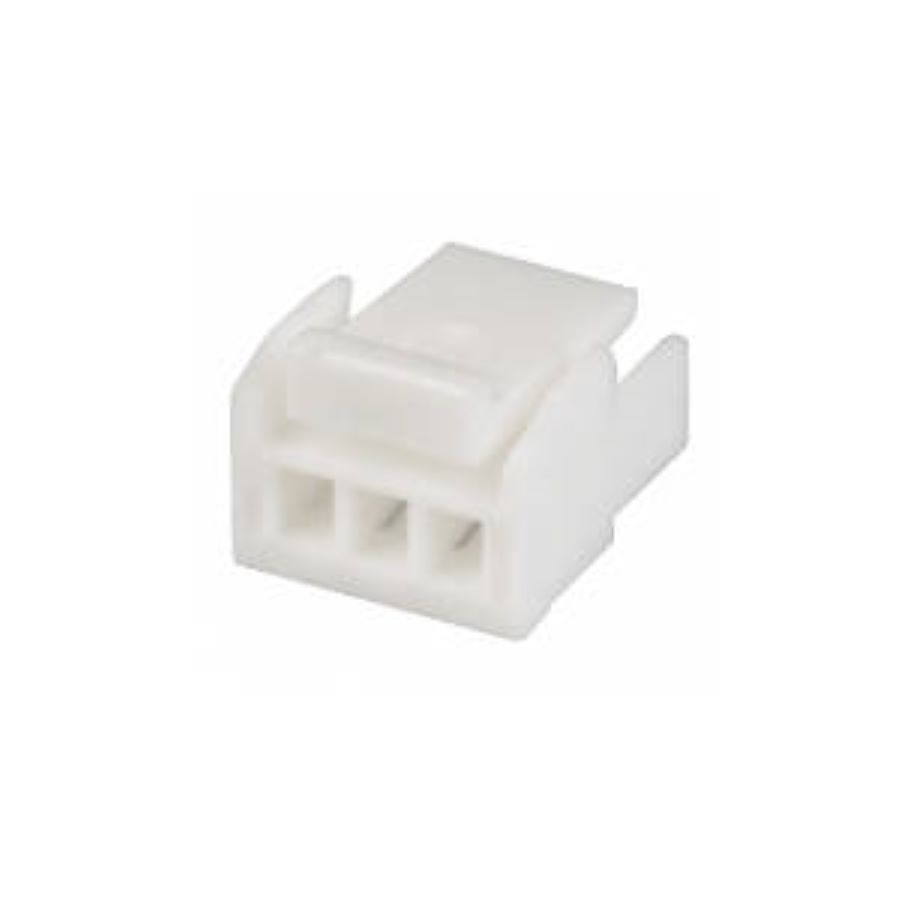

GHR-03V-S
Manufacturer:
JST
Mfr.Part #:
GHR-03V-S
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:3 Pitch:1.2446 mm
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 4.15 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 3 |
| Packaging | Bulk |
| Depth | 5.7 mm |
| RoHS | Compliant |
| Lead Pitch | 1.25 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1.2446 mm |
| Current Rating | 1 A |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 3 |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Fastening Type | Latch |
| Housing Color | Natural |
Stock: 16043
Distributors
pcbx
pcbxUnit Price$0.06010
Ext.Price$0.06010
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06010 | $0.06010 |
| 10 | $0.03005 | $0.30050 |
| 50 | $0.02728 | $1.36400 |
| 100 | $0.02476 | $2.47600 |
| 500 | $0.02248 | $11.24000 |
| 1000 | $0.02041 | $20.41000 |
| 3000 | $0.01852 | $55.56000 |
| 5000 | $0.01704 | $85.20000 |
| 10000 | $0.01568 | $156.80000 |
