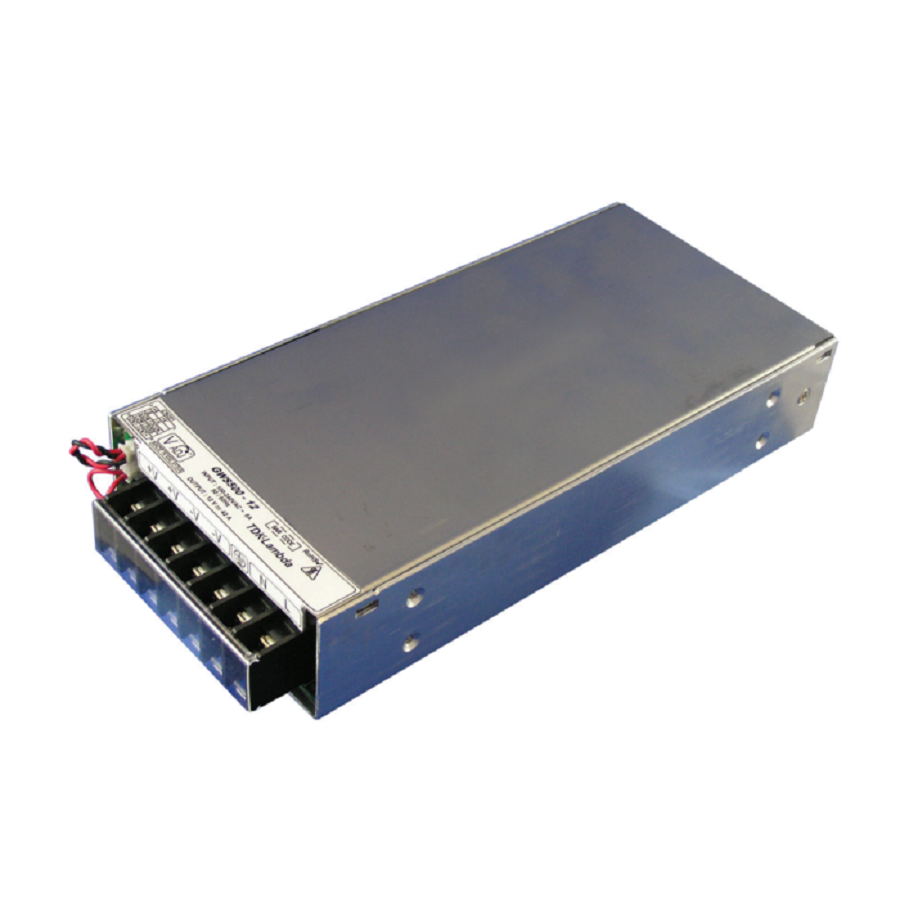

GWS500-24
Manufacturer:
TDK-Lambda
Mfr.Part #:
GWS500-24
Datasheet:
Description:
Power Supply Modules 218.00mm×105.00mm×41.00mm Chassis Mount, Panel Output Voltage:24 V Number of Outputs:1 21 A 500 W Number of Pins:23 Max Input Voltage:264 V Min Input Voltage:85 V Isolation Voltage:3 kV 90 %
| Parameter | Value |
|---|---|
| Length | 217.932 mm |
| Width | 104.902 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 23 |
| Power Rating | 504 W |
| Height | 40.894 mm |
| Packaging | Bulk |
| Depth | 104.14 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Max Current Rating | 5.5 A |
| Approvals | CE |
| Min Input Voltage | 85 V |
| Output Current | 21 A |
| Output Voltage | 24 V |
| Max Power Dissipation | 500 W |
| Max Output Current | 21 A |
| Max Input Voltage | 264 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 500 W |
| Current - Output 1 | 21 A |
| Efficiency | 90 % |
| Voltage - Output 1 | 24 V |
| Nominal Output Voltage | 24 V |
| Max Output Power | 500 W |
| Max Input Voltage (AC) | 264 V |
| Min Input Voltage (AC) | 85 V |
| Schedule B | 8504409540 |
Stock: 11
Distributors
pcbx
pcbxUnit Price$190.45266
Ext.Price$190.45266
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $190.45266 | $190.45266 |
| 10 | $178.54350 | $1785.43500 |
| 25 | $162.91025 | $4072.75625 |
| 50 | $160.13771 | $8006.88550 |
