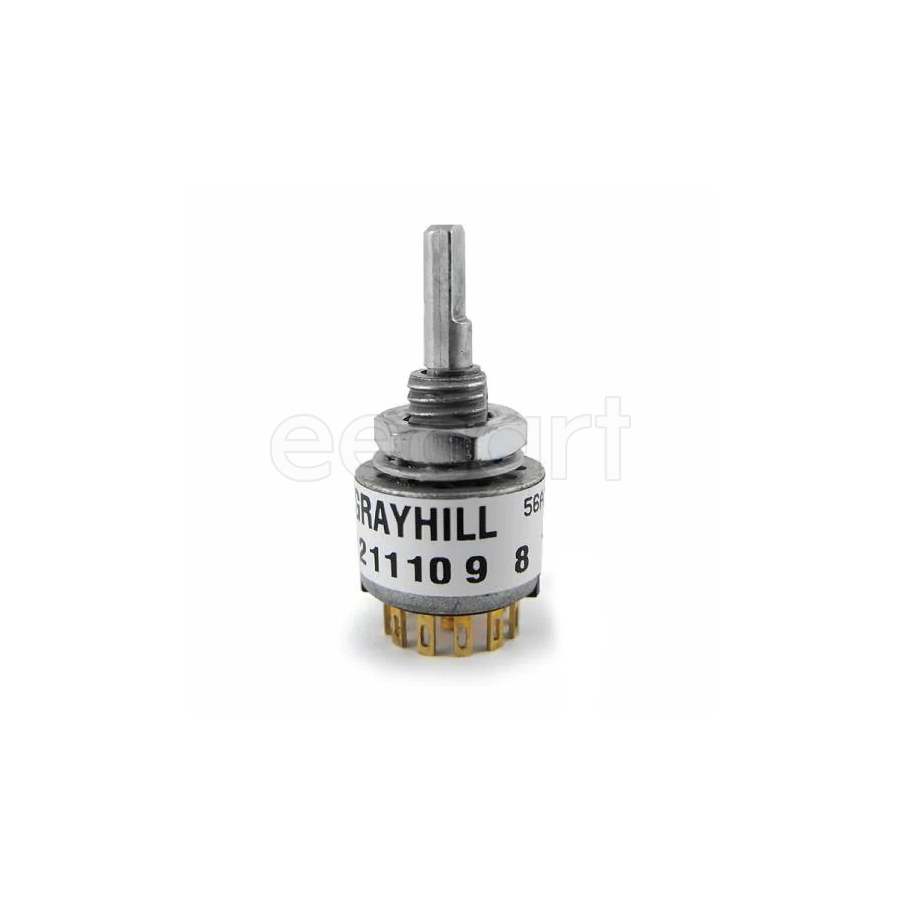

56DP30-01-1-AJN
Manufacturer:
Grayhill
Mfr.Part #:
56DP30-01-1-AJN
Datasheet:
Description:
Rotary Switches Through Hole Adjustable Index Angle:30 ° Number of Positions:12 Number of Decks:1 Current Rating:200 mA Flatted
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 12.7 mm |
| Termination | PC Pin |
| Diameter | 12.7 mm |
| Voltage Rating (AC) | 115 V |
| Number of Pins | 12 |
| Packaging | Bulk |
| Depth | 12.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 200 mA |
| Max Current Rating | 200 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Straight |
| Actuator Length | 9.53 mm |
| Number of Poles | 1 |
| Throw Configuration | SP, SP12T |
| Number of Positions | 12 |
| Housing Material | Plastic |
| Contact Style | Non-Shorting |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 115 V |
| Illumination Type | Illuminated |
| Number of Poles per Deck | 1 |
| Number of Decks | 1 |
| Actuator Type | Flatted |
| Termination Style | Solder Pin |
| Index Angle | 30 ° |
| Index Stops | Adjustable |
Stock: 12
Distributors
pcbx
pcbxUnit Price$17.11775
Ext.Price$17.11775
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $17.11775 | $17.11775 |
| 10 | $16.43358 | $164.33580 |
| 25 | $16.23839 | $405.95975 |
| 50 | $16.04552 | $802.27600 |
