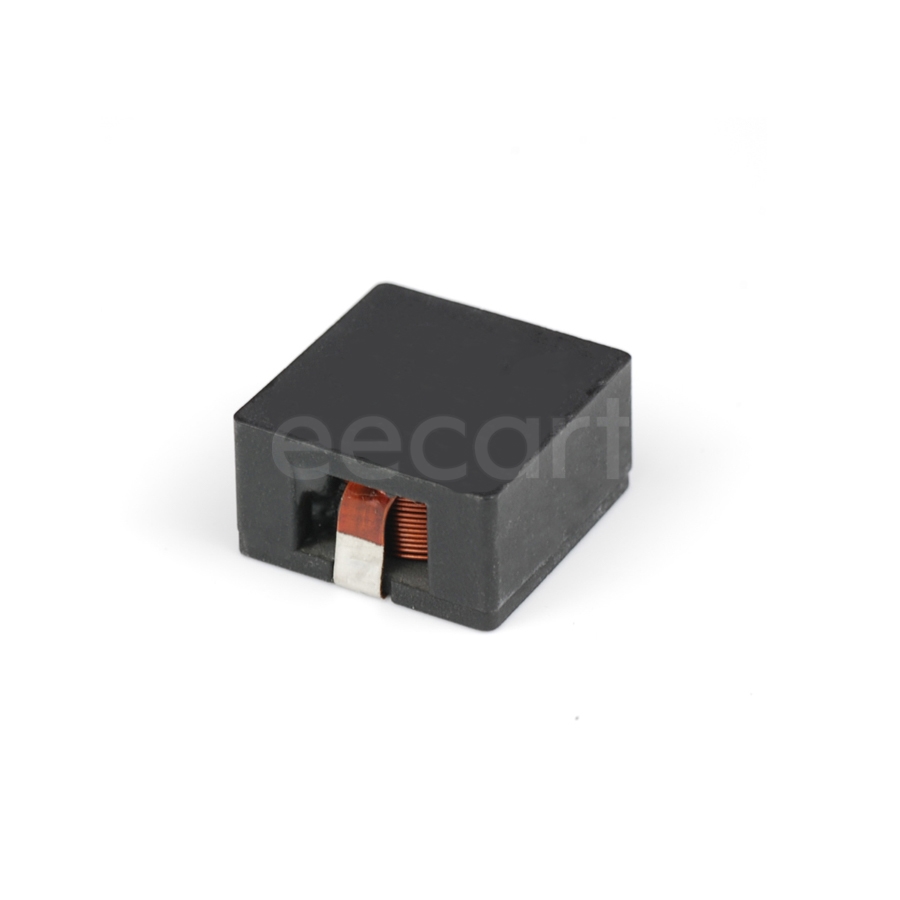

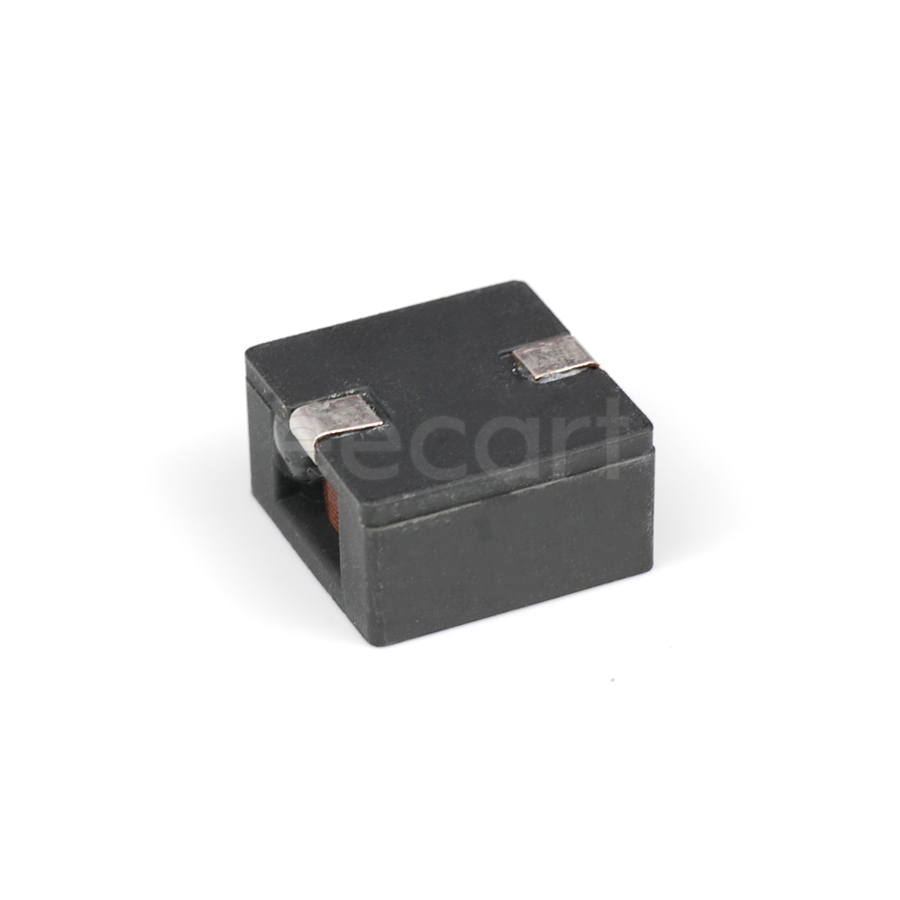

HC9-4R3-R
Manufacturer:
Eaton
Mfr.Part #:
HC9-4R3-R
Datasheet:
Description:
Fixed Inductors 14.10mmL×13.10mmW×7.50mmH SMD/SMT 4.67 µH 15 % 13 A 5.9 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 15 % |
| Length | 14.1 mm |
| Width | 13.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 7.5 mm |
| Packaging | Reel |
| Depth | 13.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 7.257478 g |
| Current Rating | 13 A |
| DC Resistance (DCR) | 5.9 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 4.67 µH |
| Core Material | Iron Powder |
| RMS Current (Irms) | 13 A |
| inductance tolerance | 15 % |
| Max DC Current | 19.1 A |
| Saturation Current | 19.1 A |
| Height - Seated (Max) | 7.5 mm |
| Type | Wirewound |
Stock: 472
Distributors
pcbx
pcbxUnit Price$2.44676
Ext.Price$2.44676
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.44676 | $2.44676 |
| 10 | $2.01287 | $20.12870 |
| 25 | $1.88584 | $47.14600 |
| 50 | $1.76683 | $88.34150 |
| 100 | $1.65534 | $165.53400 |
| 300 | $1.53034 | $459.10200 |
