HCPL-316J-500E
Manufacturer:
Broadcom
Mfr.Part #:
HCPL-316J-500E
Datasheet:
Description:

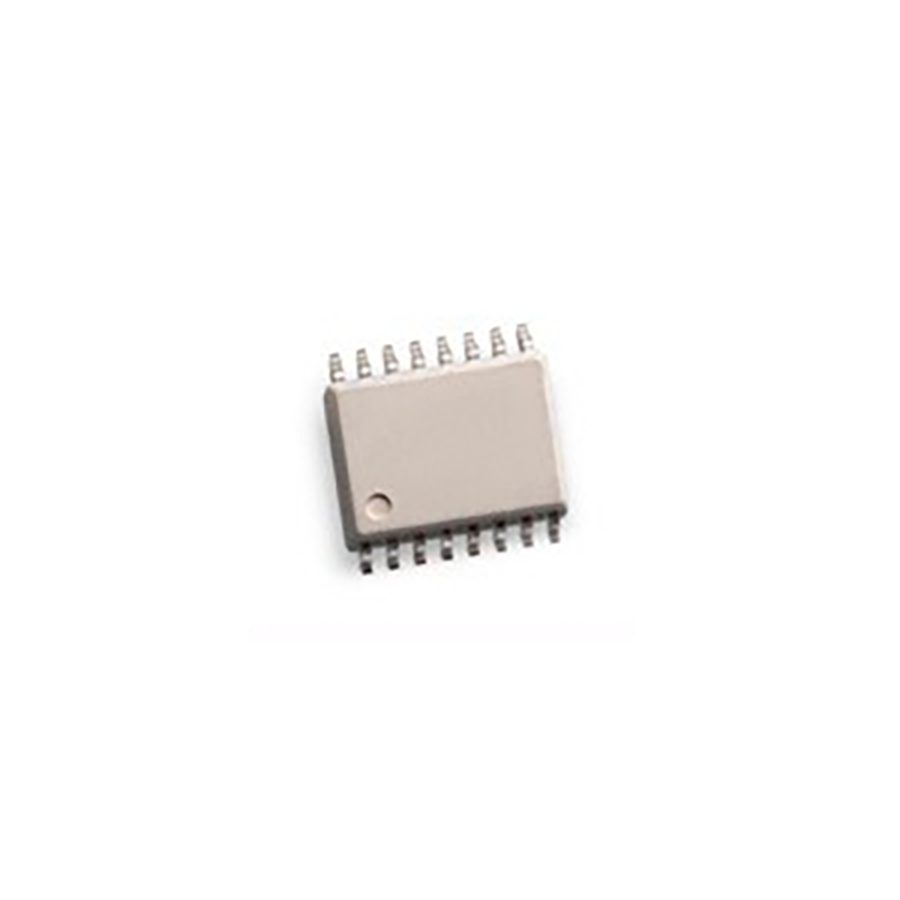

Optocouplers SO-16 SMD/SMT number of channels:1 Totem Pole Rise Time:100 ns Fall Time :100 ns
| Parameter | Value |
|---|---|
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 3.911 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 2 |
| Approvals | CSA, EN, IEC, UR |
| Output Voltage | 30 V |
| Operating Supply Voltage | 5 V |
| Output Type | Totem Pole |
| Max Power Dissipation | 1.2 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 2.5 A |
| Ambient Temperature Range High | 100 °C |
| Number of Channels | 1 |
| Turn-On Delay Time | 300 ns |
| Turn-Off Delay Time | 320 ns |
| Propagation Delay | 500 ns |
| High Level Output Current | 2 A |
| Low Level Output Current | 2 A |
| Direction(Counting Sequence) | Unidirectional |
| Number of Outputs | 1 |
| Fall Time | 100 ns |
| Rise Time | 100 ns |
| Isolation Voltage | 5 kV |
| Input Current | 22 mA |
| Max Junction Temperature (Tj) | 125 °C |
| Pulse Width Distortion (PWD) | 300 ns |
