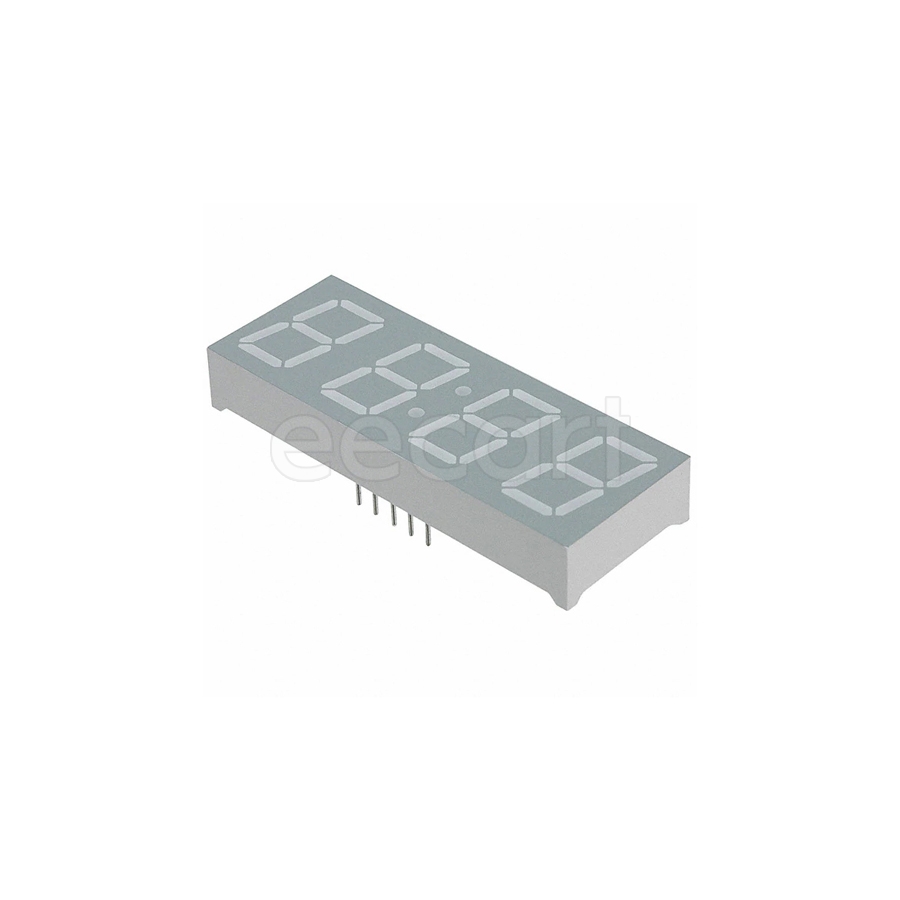

HDSP-B03E
Manufacturer:
Broadcom
Mfr.Part #:
HDSP-B03E
Datasheet:
Description:
LED Displays Through Hole 7-Segment 7.8 mm x 14.22 mm Number of Characters:4
| Parameter | Value |
|---|---|
| Length | 51.308 mm |
| Width | 19.05 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 7.874 mm |
| Packaging | Reel |
| Depth | 19.1 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 30 |
| Forward Current | 20 mA |
| Forward Voltage | 2.05 V |
| Operating Supply Voltage | 2.05 V |
| Max Power Dissipation | 65 mW |
| Color | Red |
| Illumination Color | Red |
| Luminous Intensity | 5.5 mcd |
| Power Dissipation | 65 mW |
| Element Configuration | Common Cathode |
| Wavelength | 622 nm |
| power consumption | 65 mW |
| Dominant Wavelength/CCT (K) | 622 nm |
| Reverse Voltage | 5 V |
| Test Current | 10 mA |
| Number of Segments | 7 |
| Character Height | 14.22 mm |
| Character Width | 7.8 mm |
| Number of Characters | 4 |
| Viewing Area (height) | 14.22 mm |
| Character Size | 7.8 mm x 14.22 mm |
| Display Type | 7-Segment |
