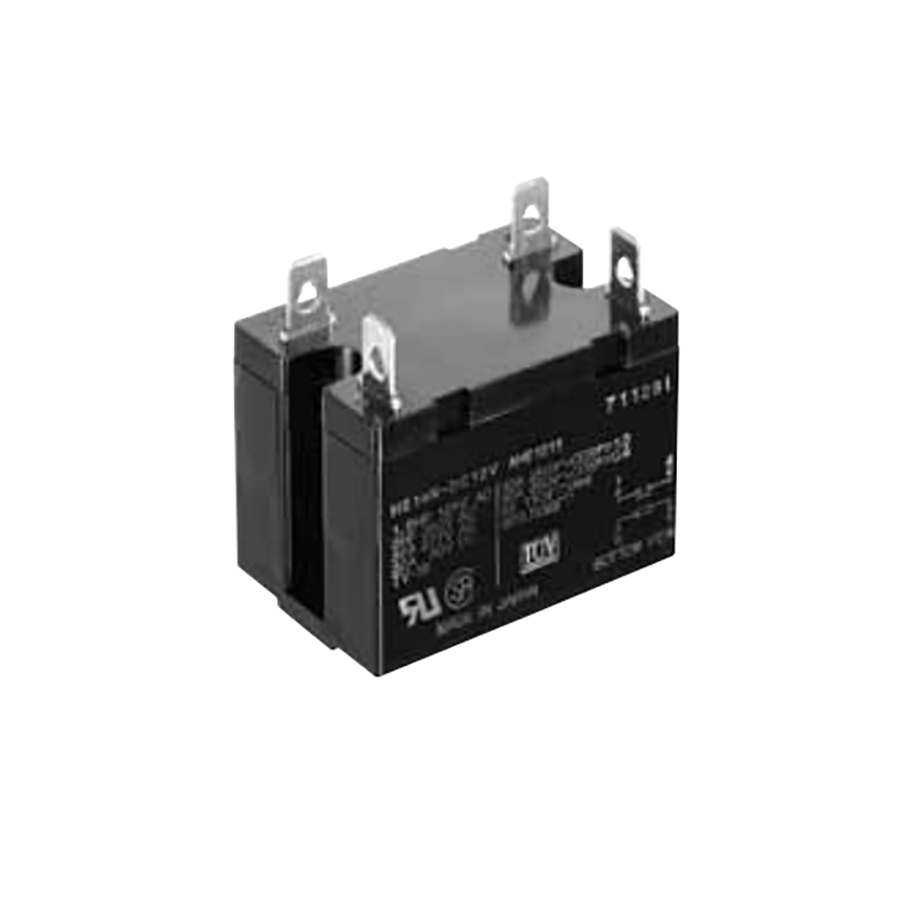

HE1AN-P-DC12V-Y5
Manufacturer:
Panasonic
Mfr.Part #:
HE1AN-P-DC12V-Y5
Datasheet:
Description:
Power Relays PCB 160 mA 75 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 38 mm |
| Width | 33 mm |
| Termination | PC Pin |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 4 |
| Power Rating | 1.92 W |
| Height | 36.3 mm |
| Packaging | Bulk |
| Depth | 33 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 80 g |
| Contact Material(Contact Finish) | Silver, Tin |
| Max Current Rating | 48 A |
| Approvals | UL |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 160 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 75 Ω |
| Relay Type | General Purpose |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Contact Current Rating | 48 A |
| switching current | 30 A |
| power consumption | 1.92 W |
| Switching Voltage | 277 V, 30 V |
| Coil Power | 1.92 W |
| Switching Capacity | 8.31 kW |
