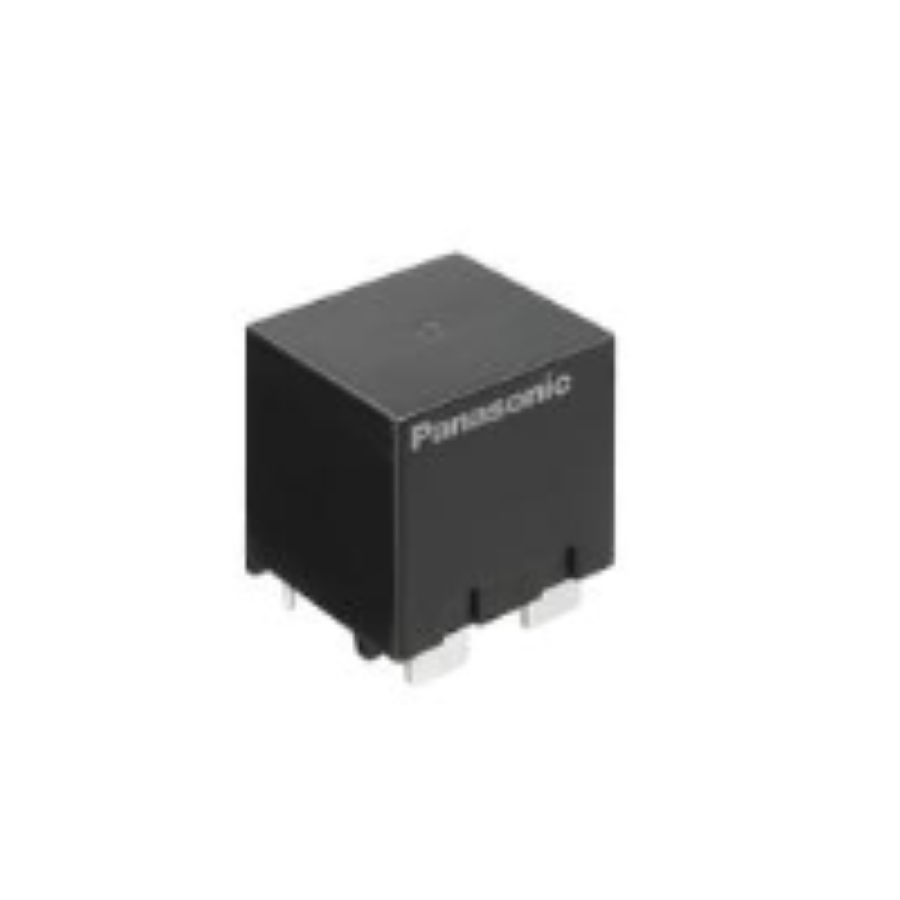

HE1AN-W-DC12V-Y6
Manufacturer:
Panasonic
Mfr.Part #:
HE1AN-W-DC12V-Y6
Datasheet:
Description:
Power Relays Through Hole 160 mA 75 Ω 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 38 mm |
| Width | 33 mm |
| Termination | PC Pin |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Number of Pins | 4 |
| Height | 36.3 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Current Rating | 90 A |
| Throw Configuration | SPST |
| Coil Voltage (DC) | 12 V |
| Coil Current | 160 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 75 Ω |
| Relay Type | General Purpose |
| Operate Time | 30 ms |
| Release Time | 10 ms |
| Contact Current Rating | 90 A |
| Termination Style | PC Pin |
| Switching Voltage | 277 VAC |
| Coil Power | 1.92 W |
| Must Operate Voltage | 8.4 V |
| Must Release Voltage | 1.2 V |
Stock: 247
Distributors
pcbx
pcbxUnit Price$13.82421
Ext.Price$13.82421
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.82421 | $13.82421 |
| 10 | $12.77265 | $127.72650 |
| 25 | $11.84676 | $296.16900 |
