HIP4082IPZ
Manufacturer:
Intersil
Mfr.Part #:
HIP4082IPZ
Datasheet:
Description:

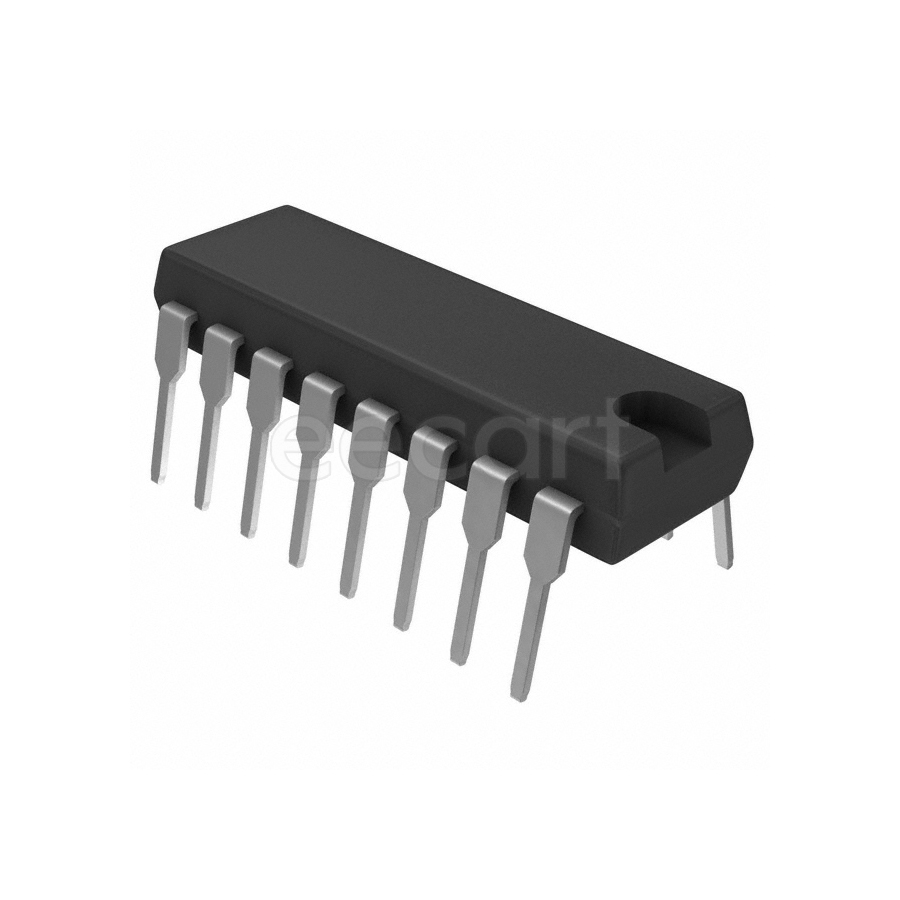

Gate Drivers PDIP-16 Through Hole Half-Bridge N-Channel MOSFET Independent
| Parameter | Value |
|---|---|
| Length | 19.68 mm |
| Width | 7.11 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Height | 4.95 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.25 A |
| Output Voltage | 86.3 V |
| Operating Supply Voltage | 8.5 V to 15 V |
| Max Supply Voltage | 15 V |
| Min Supply Voltage | 8.5 V |
| Max Output Current | 1.25 A |
| Max Supply Current | 6.4 mA |
| Switching Frequency | 100 kHz |
| Number of Outputs | 4 |
| Fall Time | 9 ns |
| Rise Time | 9 ns |
| Nominal Supply Current | 2.6 mA |
| Number of Drivers | 4 |
| Max Output Voltage | 12 V |
| Channel Type | Independent |
| Gate Type | N-Channel MOSFET |
| Logic Voltage | 1 V, 2.5 V |
| High Side Voltage | 95 V |
| Configuration | Half-Bridge |
