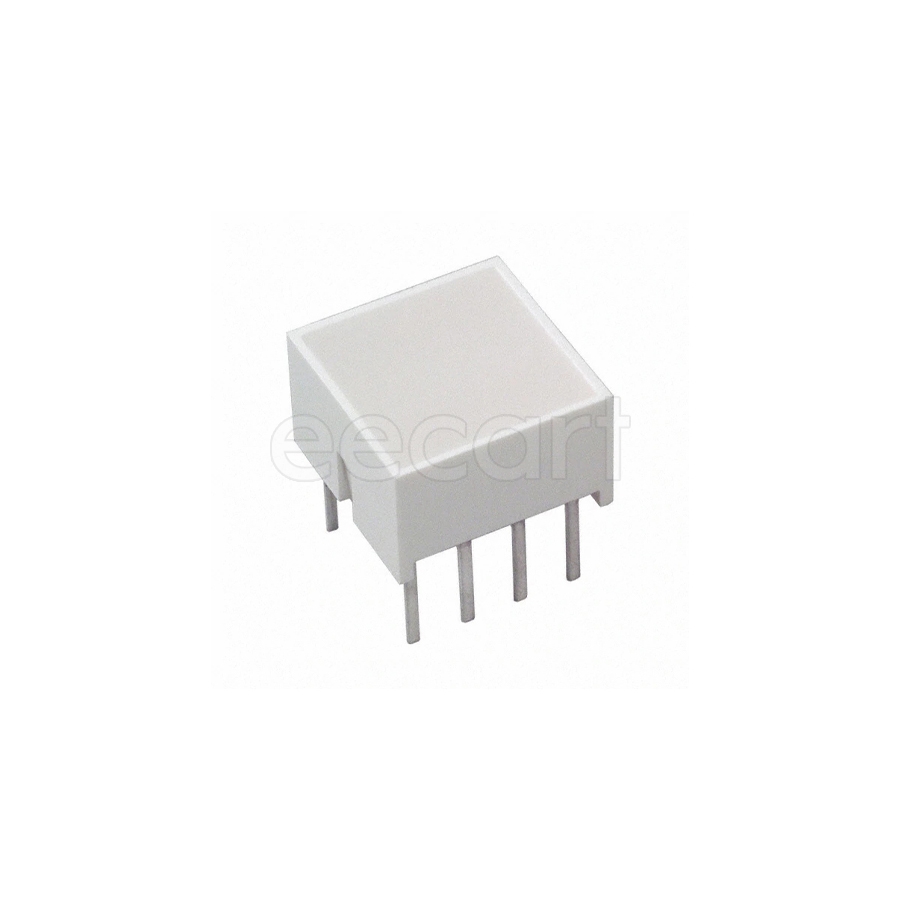

HLMP-2965
Manufacturer:
Broadcom
Mfr.Part #:
HLMP-2965
Datasheet:
Description:
LED Displays Through Hole 8.89 mm
| Parameter | Value |
|---|---|
| Length | 10.16 mm |
| Width | 10.16 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 8 |
| Height | 6.473 mm |
| Voltage Rating | 2 V |
| Depth | 10.16 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Number of Elements | 2 |
| Current | 30 mA |
| Forward Current | 20 mA |
| Forward Voltage | 2.2 V |
| Max Power Dissipation | 135 mW |
| Color | Green, Red |
| Illumination Color | Green, Red |
| Lens Style | Square |
| Luminous Intensity | 45 mcd |
| Power Dissipation | 135 mW |
| Number of Contacts | 8 |
| Row Spacing | 7.62 mm |
| Number of LEDs | 2 |
| Wavelength | 565 nm |
| Peak Wavelength | 565 nm |
| Reverse Voltage | 6 V |
| Test Current | 20 mA |
| Number of Segments | 1 |
| Character Size | 8.89 mm |
| Packaging | Tube |
