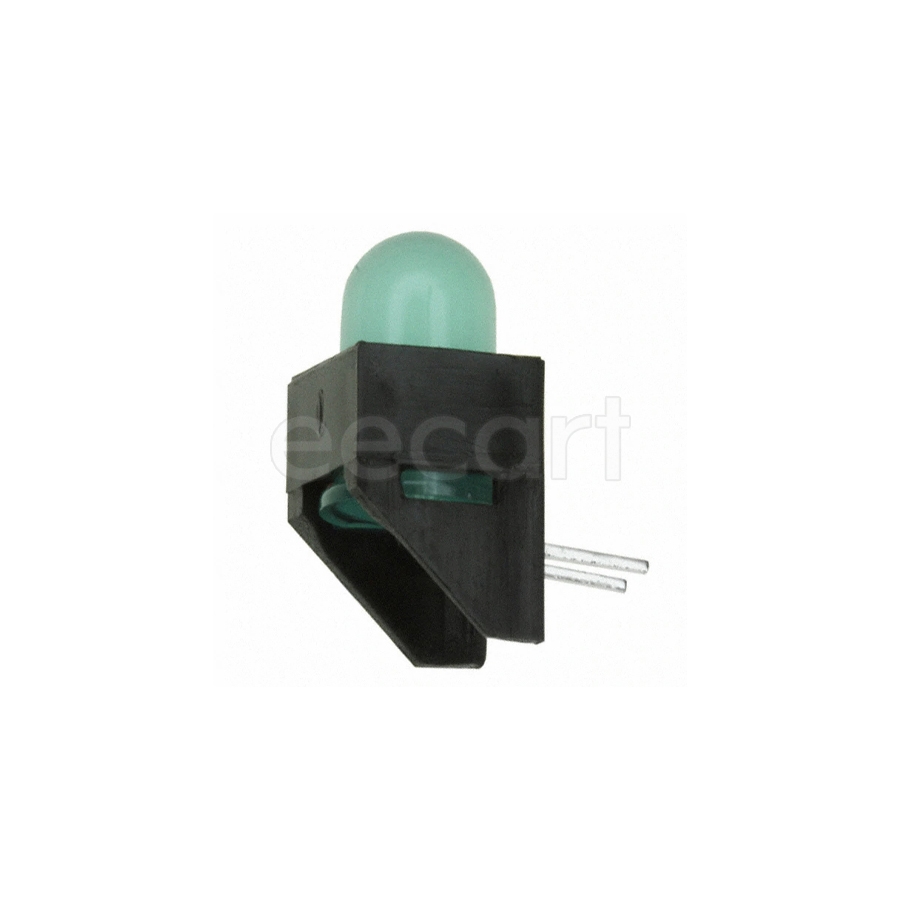

HLMP-4740-A00B2
Manufacturer:
Broadcom
Mfr.Part #:
HLMP-4740-A00B2
Datasheet:
Description:
LEDs 9.02mmL×6.21mmW×6.24mmH Through Hole Green 569 nm 2 mA 1.9 V
| Parameter | Value |
|---|---|
| Length | 6.1 mm |
| Diameter | 5 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 2 |
| Height | 9.19 mm |
| Packaging | Bulk |
| Voltage Rating | 1.9 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 4.1 mm |
| Number of Elements | 1 |
| Current | 2 mA |
| Forward Current | 2 mA |
| Forward Voltage | 1.9 V |
| Operating Supply Voltage | 2.2 V |
| Max Power Dissipation | 15.4 mW |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Diffused |
| Luminous Intensity | 2.3 mcd |
| Power Dissipation | 15.4 mW |
| Element Configuration | Single |
| Number of LEDs | 1 |
| Viewing Angle | 50 ° |
| Wavelength | 569 nm |
| Peak Wavelength | 565 nm |
| Dominant Wavelength/CCT (K) | 569 nm |
| Reverse Voltage | 5 V |
| Test Current | 2 mA |
| Lens Color | Tinted |
| Lens Transparency | Diffused |
Stock: 5408
Distributors
pcbx
pcbxUnit Price$0.95154
Ext.Price$0.95154
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.95154 | $0.95154 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.61398 | $15.34950 |
| 50 | $0.55744 | $27.87200 |
| 100 | $0.50612 | $50.61200 |
| 300 | $0.46792 | $140.37600 |
| 500 | $0.43260 | $216.30000 |
| 1000 | $0.40866 | $408.66000 |
| 3000 | $0.34967 | $1049.01000 |
