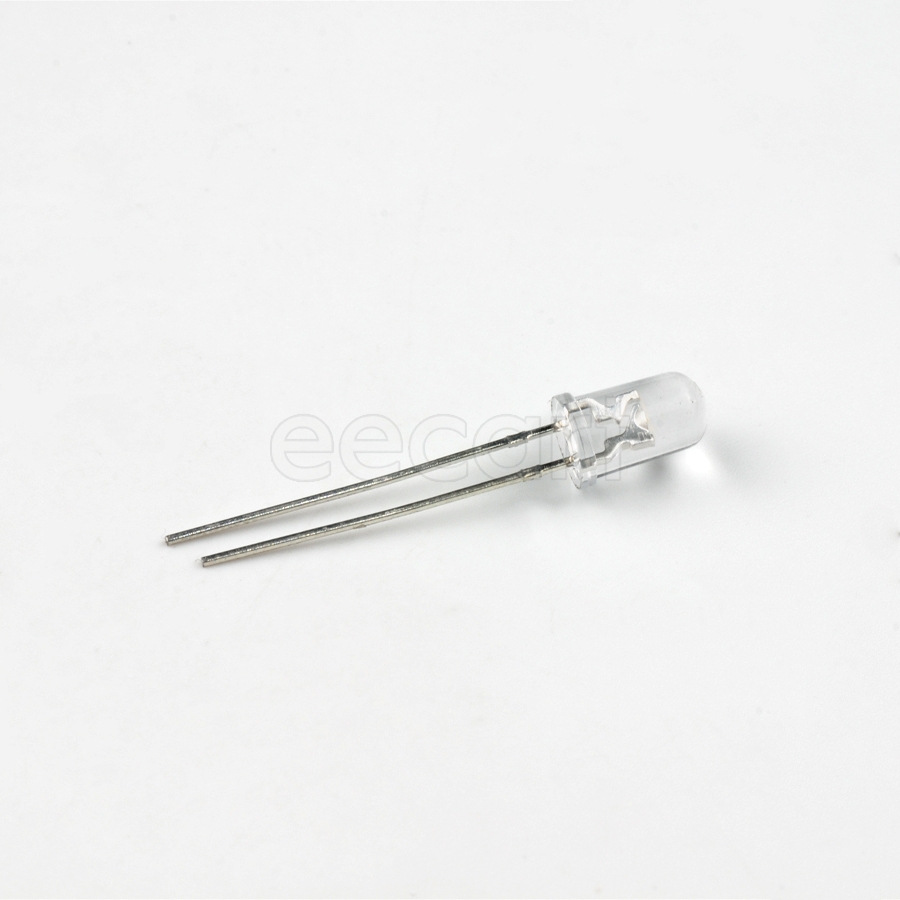

HLMP-CM3G-Y10DD
Manufacturer:
Broadcom
Mfr.Part #:
HLMP-CM3G-Y10DD
Datasheet:
Description:
LEDs 5.0mmD×8.71mmH Through Hole Green 525 nm 30 mA 3.1 V
| Parameter | Value |
|---|---|
| Length | 5.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 8.9 mm |
| Depth | 5.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 30 mA |
| Forward Voltage | 3.1 V |
| Color | Green |
| Lens Style | Circular, Clear, Colorless, Diffused |
| Luminous Intensity | 15.15 cd |
| Power Dissipation | 110 mW |
| Number of LEDs | 1 |
| Viewing Angle | 30 ° |
| Wavelength | 525 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 525 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Illumination Color | Green |
| Packaging | Ammo Pack |
Stock: 15892
Distributors
pcbx
pcbxUnit Price$0.84467
Ext.Price$0.84467
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84467 | $0.84467 |
| 10 | $0.59674 | $5.96740 |
| 25 | $0.54200 | $13.55000 |
| 50 | $0.49228 | $24.61400 |
| 100 | $0.44713 | $44.71300 |
| 300 | $0.41244 | $123.73200 |
| 500 | $0.38044 | $190.22000 |
| 1000 | $0.35907 | $359.07000 |
| 3000 | $0.33693 | $1010.79000 |
| 5000 | $0.31616 | $1580.80000 |
| 10000 | $0.29666 | $2966.60000 |
