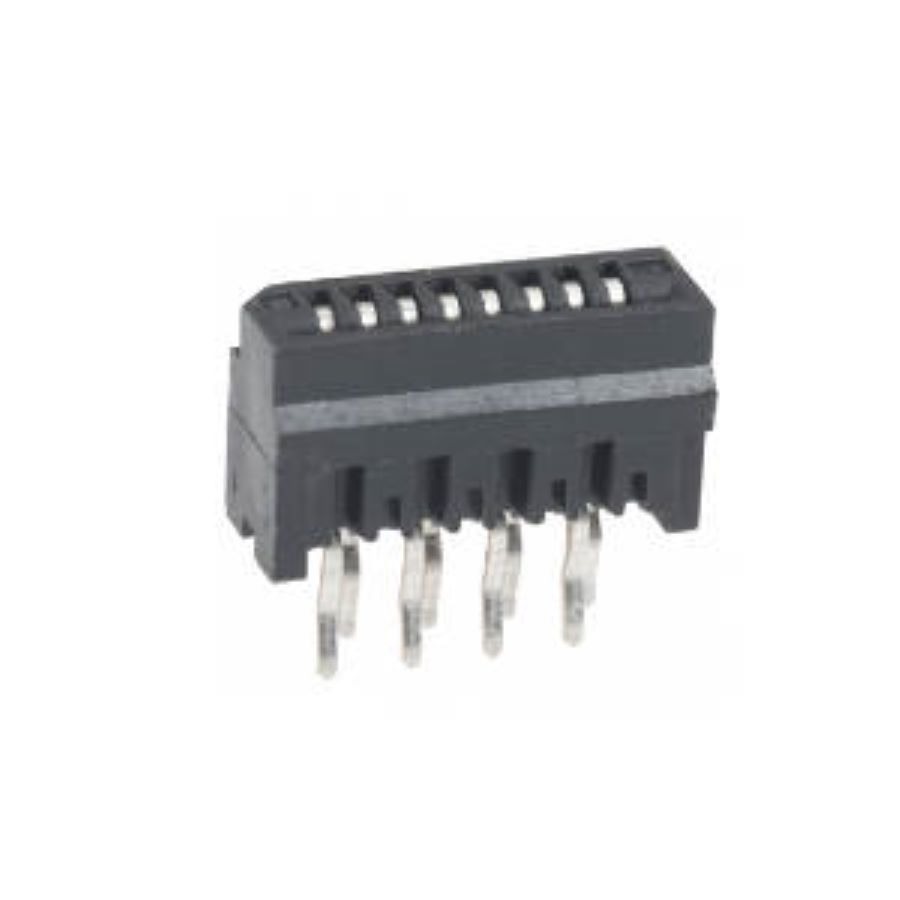

HLW8S-2C7LF
Manufacturer:
Amphenol
Mfr.Part #:
HLW8S-2C7LF
Datasheet:
Description:
FFC / FPC Through Hole Number of Positions:8 1 A 100 V
| Parameter | Value |
|---|---|
| Length | 10.6 mm |
| Width | 3.9 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 100 V |
| Packaging | Tray |
| Voltage Rating | 100 V |
| Depth | 3.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 1 A |
| Max Voltage Rating (DC) | 100 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Housing Material | Polybutylene |
| Contact Location | Top |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 100 V |
| Housing Color | Black |
| Mounting Angle | Vertical |
Stock: 16803
Distributors
pcbx
pcbxUnit Price$0.08720
Ext.Price$0.08720
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08720 | $0.08720 |
| 10 | $0.07010 | $0.70100 |
| 50 | $0.06491 | $3.24550 |
| 100 | $0.06010 | $6.01000 |
| 500 | $0.05689 | $28.44500 |
| 1000 | $0.05386 | $53.86000 |
| 3000 | $0.05212 | $156.36000 |
| 5000 | $0.05044 | $252.20000 |
| 10000 | $0.04881 | $488.10000 |
