HSBA8066
Manufacturer:
HUASHUO
Mfr.Part #:
HSBA8066
Datasheet:
Description:

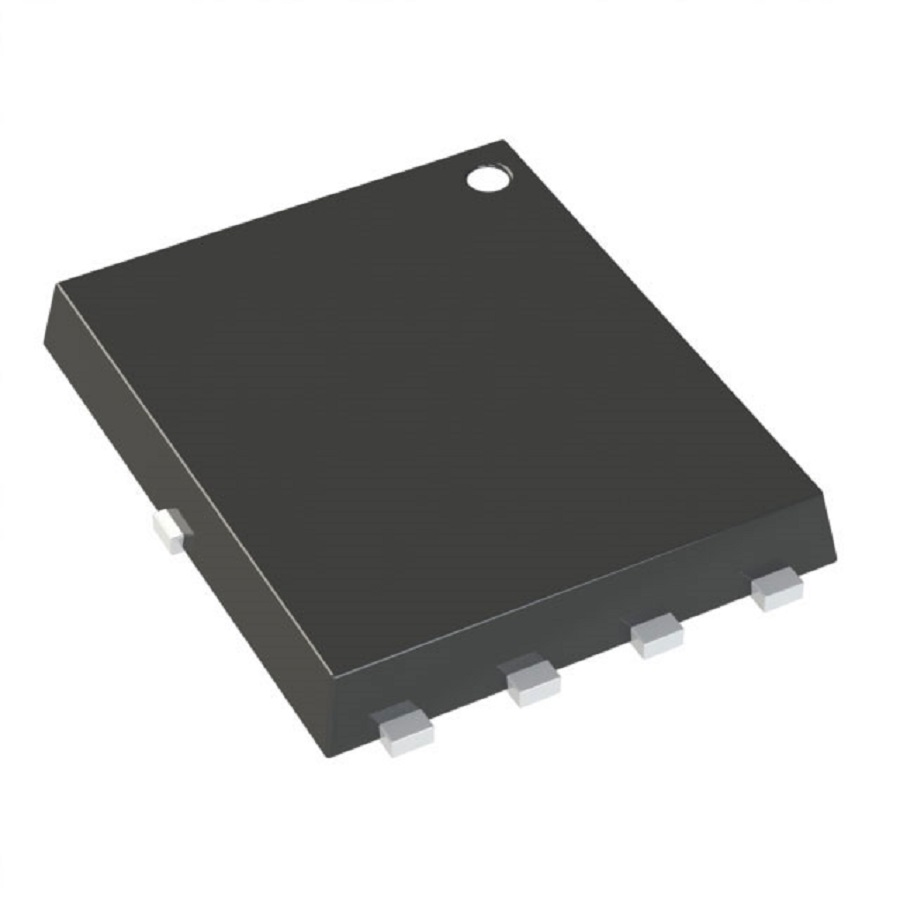

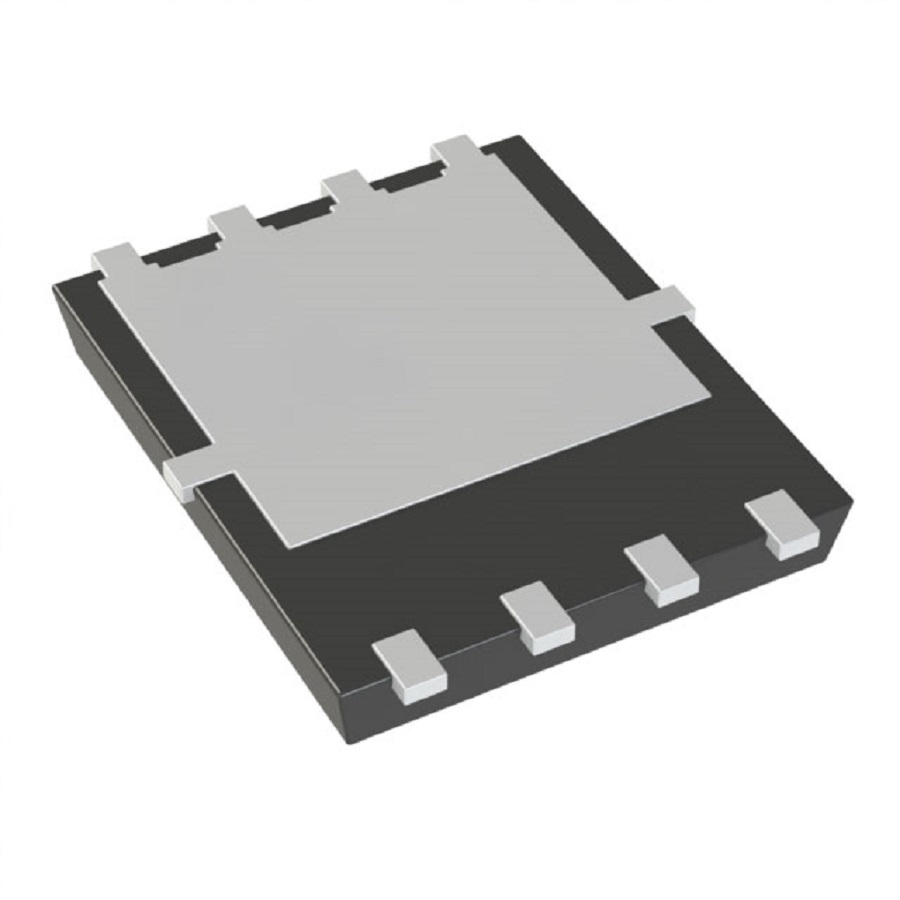

MOSFETs PRPAK 5x6-8L SMD/SMT N-Channel number of channels:1 52 W 80 V Continuous Drain Current (ID):60 A 29 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 52 W |
| Number of Channels | 1 |
| Input capacitance | 1.738 pF |
| Continuous Drain Current (ID) | 60 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 29 nC |
| Drain to Source Resistance | 7.2 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 80 V |
| Gate to Source Threshold Voltage | 2.3 V |
Stock: 1556
Distributors
pcbx
pcbxUnit Price$0.56630
Ext.Price$0.56630
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56630 | $0.56630 |
| 10 | $0.45302 | $4.53020 |
| 25 | $0.41483 | $10.37075 |
| 50 | $0.37986 | $18.99300 |
| 100 | $0.34784 | $34.78400 |
| 300 | $0.31383 | $94.14900 |
| 500 | $0.28314 | $141.57000 |
| 1000 | $0.26656 | $266.56000 |
