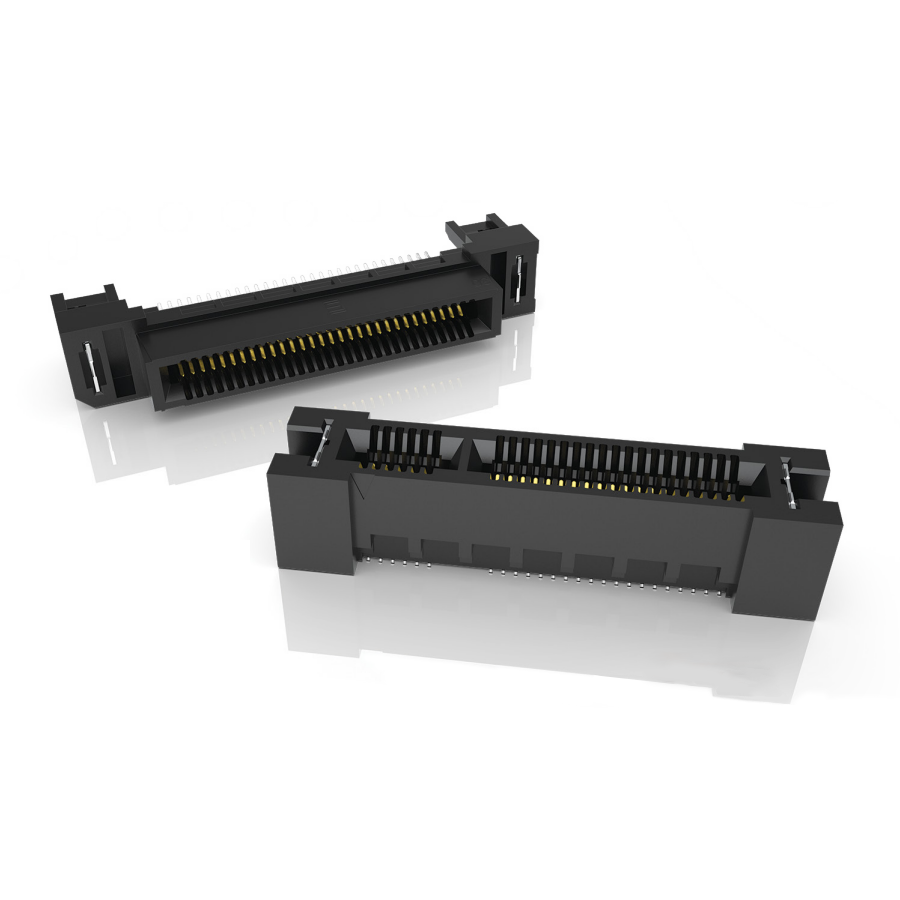

HSEC8-160-01-L-DV-A-BL
Manufacturer:
Samtec
Mfr.Part #:
HSEC8-160-01-L-DV-A-BL
Datasheet:
Description:
Edgeboard Connectors SMD/SMT Female Vertical Number of Positions:120
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 12.33 mm |
| Packaging | Bulk |
| Voltage Rating | 240 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 800 µm |
| Current Rating | 2.8 A |
| Gender | Female |
| Number of Contacts | 120 |
| Contact Type | Cantilever |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Card Thickness | 1.6 mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Angle | Vertical |
| Card Type | PCI Express |
Stock: 572
Distributors
pcbx
pcbxUnit Price$2.95291
Ext.Price$2.95291
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.95291 | $2.95291 |
| 10 | $2.71550 | $27.15500 |
| 25 | $2.62192 | $65.54800 |
| 50 | $2.55183 | $127.59150 |
| 100 | $2.48207 | $248.20700 |
| 300 | $2.40083 | $720.24900 |
| 500 | $2.32222 | $1161.11000 |
| 1000 | $2.25446 | $2254.46000 |
