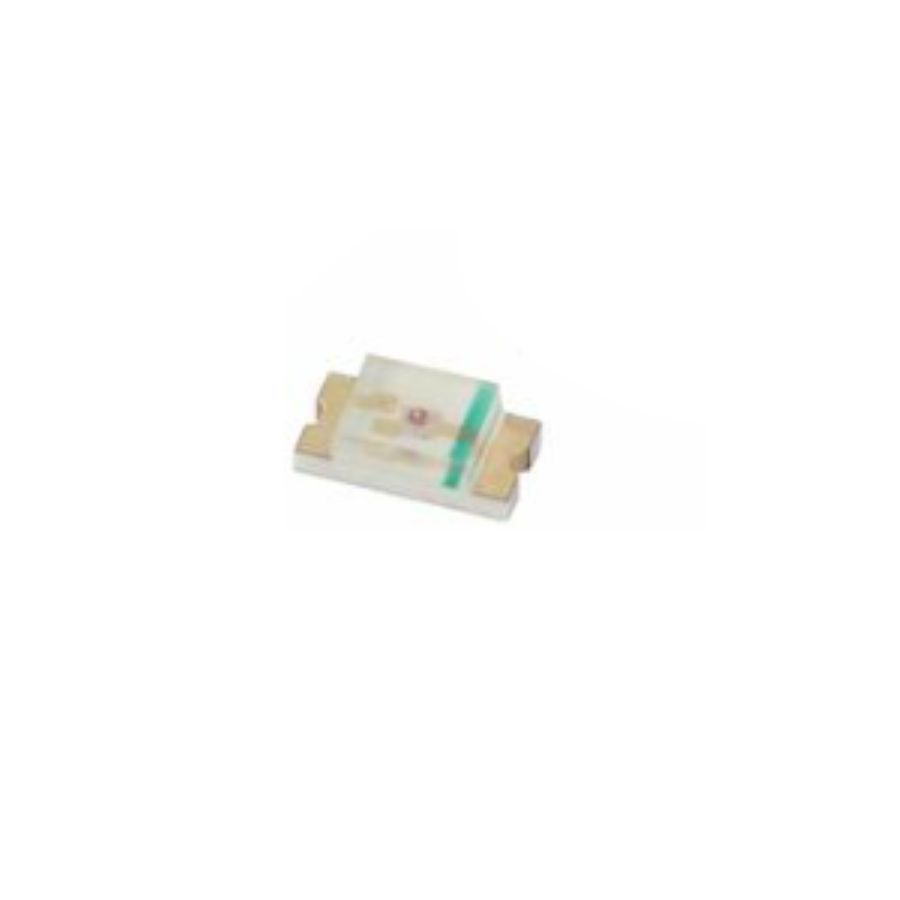

HSMA-C190
Manufacturer:
Broadcom
Mfr.Part #:
HSMA-C190
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Orange 592 nm 20 mA 1.9 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.9 V |
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 70 kΩ |
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Number of Pins | 2 |
| Resistance | 70 kΩ |
| Power Rating | 60 mW |
| Height | 800 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 0.002 % |
| Load Capacitance | 12.5 pF |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 1.9 V |
| Max Power Dissipation | 60 mW |
| Color | Orange, Yellow |
| Illumination Color | Orange |
| Lens Style | Diffused |
| Luminous Intensity | 90 mcd |
| Power Dissipation | 60 mW |
| Number of LEDs | 1 |
| Viewing Angle | 170 ° |
| Wavelength | 592 nm |
| Lens Transparency | Diffused |
| Lens Color | Clear, White |
| Peak Wavelength | 595 nm |
| Dominant Wavelength/CCT (K) | 592 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Max Junction Temperature (Tj) | 95 °C |
| Luminous Flux | 480 lm |
| RoHS | Compliant |
Stock: 9578
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.26161 | $2.61610 |
| 50 | $0.22283 | $11.14150 |
| 100 | $0.18980 | $18.98000 |
| 500 | $0.15730 | $78.65000 |
| 1000 | $0.14620 | $146.20000 |
| 3000 | $0.13411 | $402.33000 |
| 5000 | $0.12302 | $615.10000 |
| 10000 | $0.11285 | $1128.50000 |
