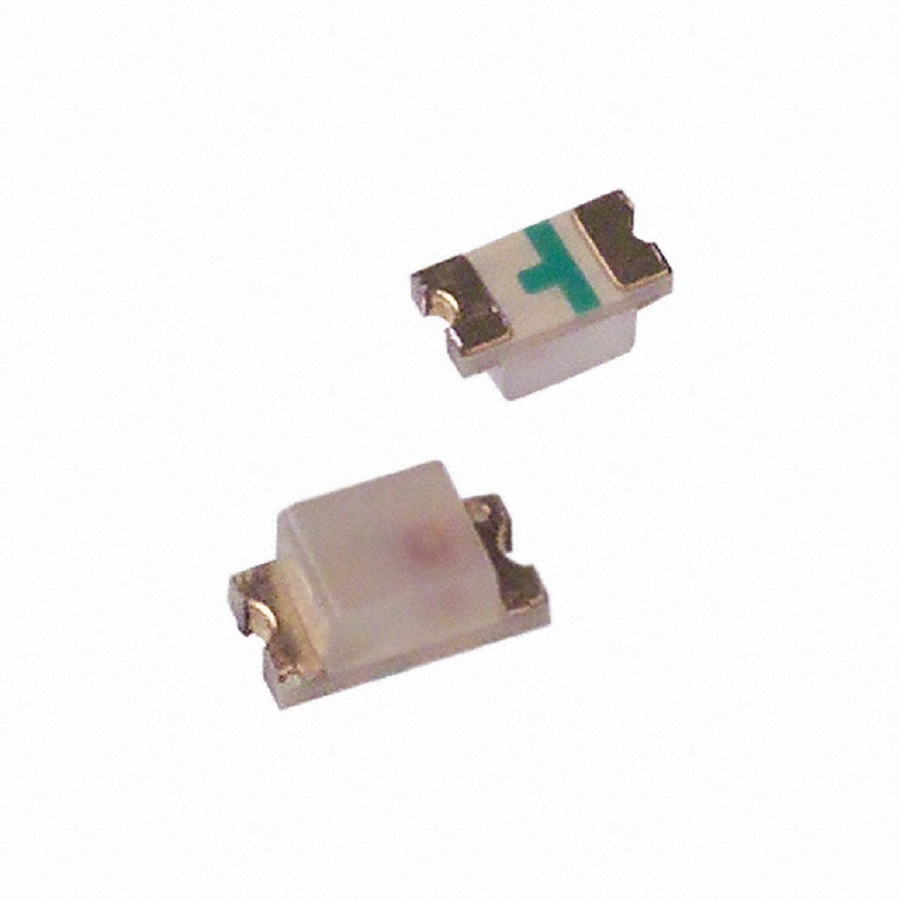

HSMA-C197
Manufacturer:
Broadcom
Mfr.Part #:
HSMA-C197
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Orange 592 nm 20 mA 1.9 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Power Rating | 60 mW |
| Height | 400 µm |
| Packaging | Reel |
| Depth | 800 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 1.9 V |
| Color | Orange |
| Illumination Color | Orange |
| Lens Style | Diffused |
| Luminous Intensity | 90 mcd |
| Power Dissipation | 60 mW |
| Number of LEDs | 1 |
| Viewing Angle | 130 ° |
| Wavelength | 592 nm |
| Lens Transparency | Diffused |
| Lens Color | White |
| Dominant Wavelength/CCT (K) | 592 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
Stock: 1831
Distributors
pcbx
pcbxUnit Price$0.30641
Ext.Price$0.30641
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30641 | $0.30641 |
| 10 | $0.21086 | $2.10860 |
| 50 | $0.17857 | $8.92850 |
| 100 | $0.15123 | $15.12300 |
| 500 | $0.12431 | $62.15500 |
| 1000 | $0.11546 | $115.46000 |
| 3000 | $0.10153 | $304.59000 |
