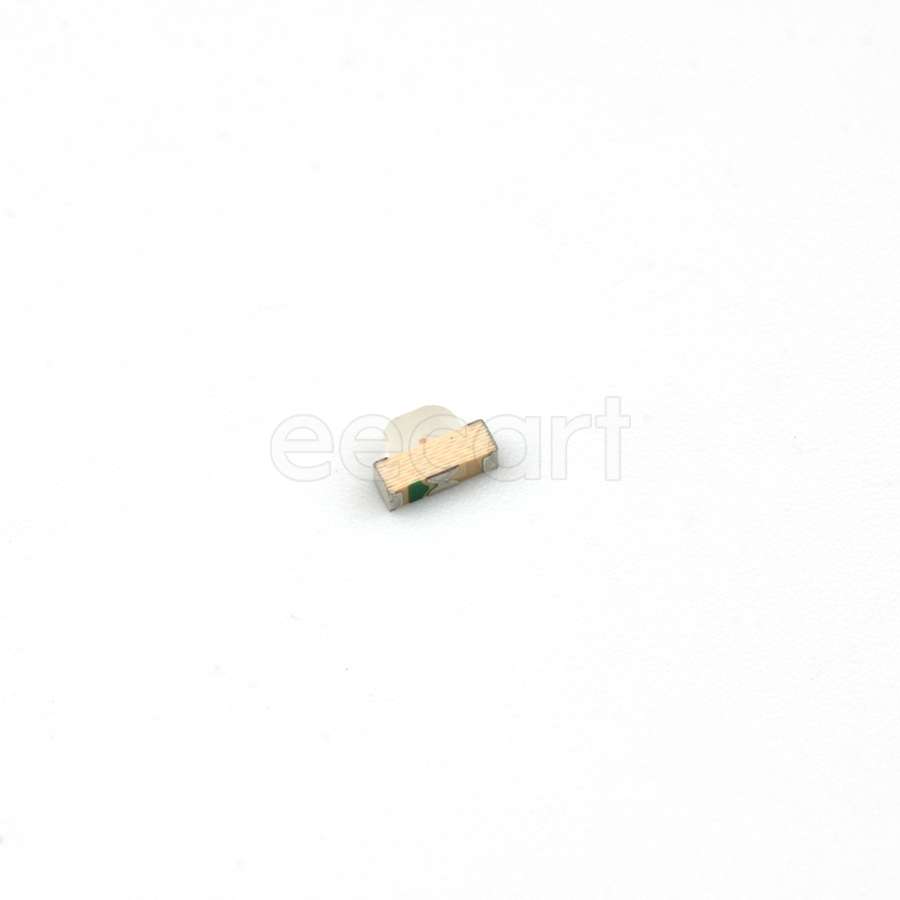

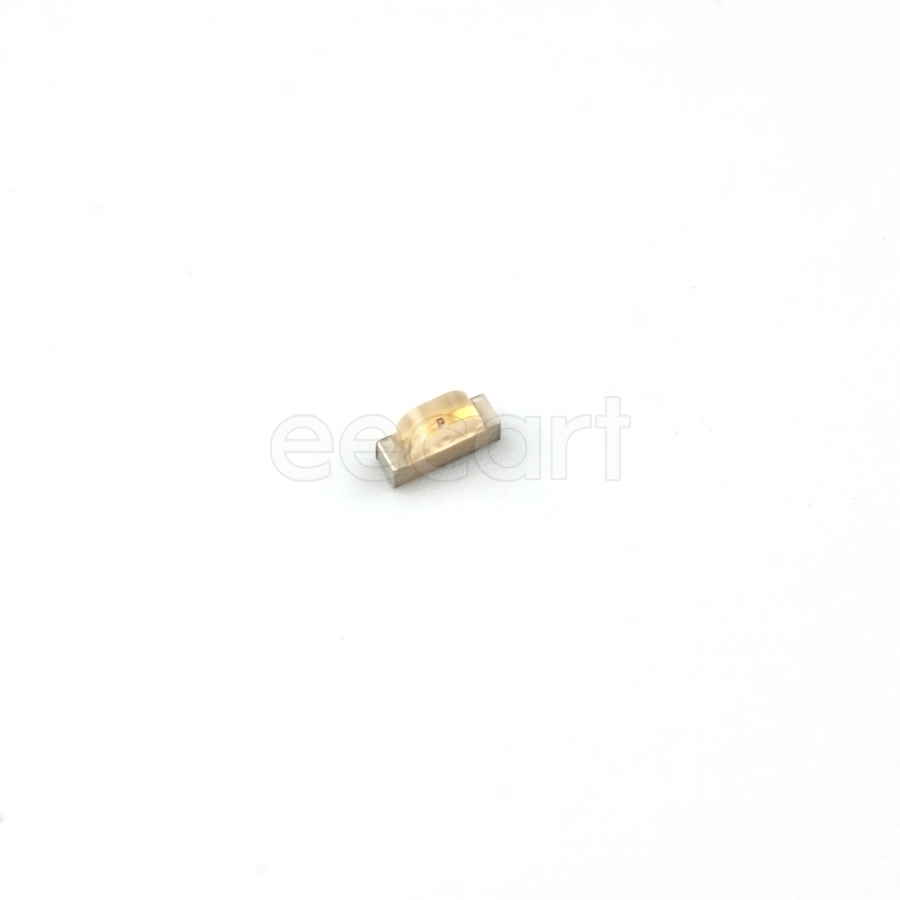

HSMC-C680
Manufacturer:
Broadcom
Mfr.Part #:
HSMC-C680
Datasheet:
Description:
LEDs Side Looker SMD/SMT Red 630 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Power Rating | 72 mW |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Colorless, Diffused, Dome, Rectangular |
| Luminous Intensity | 62.3 mcd |
| Power Dissipation | 72 mW |
| Number of LEDs | 1 |
| Viewing Angle | 115 ° |
| Wavelength | 630 nm |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 630 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
Stock: 345
Distributors
pcbx
pcbxUnit Price$0.24366
Ext.Price$0.24366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.24366 | $0.24366 |
| 10 | $0.16671 | $1.66710 |
| 50 | $0.14075 | $7.03750 |
| 100 | $0.11883 | $11.88300 |
| 500 | $0.09660 | $48.30000 |
| 1000 | $0.08977 | $89.77000 |
| 3000 | $0.06386 | $191.58000 |
| 5000 | $0.05446 | $272.30000 |
