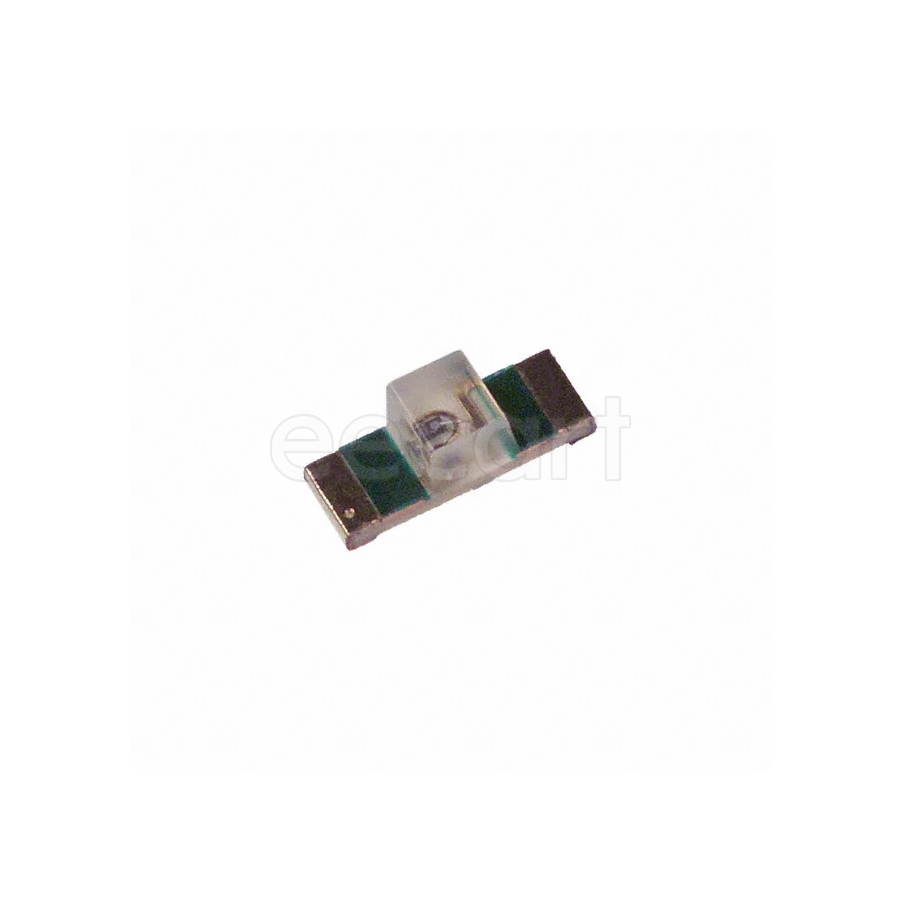

HSMW-C265
Manufacturer:
Broadcom
Mfr.Part #:
HSMW-C265
Datasheet:
Description:
LEDs 1305 SMD/SMT White 20 mA 3.6 V
| Parameter | Value |
|---|---|
| Length | 3.4 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1305 |
| Case Code (Metric) | 3412 |
| Number of Pins | 2 |
| Power Rating | 78 mW |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 1 |
| Forward Current | 20 mA |
| Forward Voltage | 3.6 V |
| Max Power Dissipation | 78 mW |
| Color | White |
| Illumination Color | White |
| Lens Style | Colorless, Diffused, Rectangular |
| Luminous Intensity | 180 mcd |
| Power Dissipation | 78 mW |
| Number of LEDs | 1 |
| Viewing Angle | 150 ° |
| Lens Transparency | Diffused |
| Lens Color | Clear, White |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
Stock: 9298
Distributors
pcbx
pcbxUnit Price$0.68822
Ext.Price$0.68822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68822 | $0.68822 |
| 10 | $0.49415 | $4.94150 |
| 25 | $0.44741 | $11.18525 |
| 50 | $0.40509 | $20.25450 |
| 100 | $0.36677 | $36.67700 |
| 300 | $0.33692 | $101.07600 |
| 500 | $0.30949 | $154.74500 |
| 1000 | $0.29153 | $291.53000 |
| 3000 | $0.23853 | $715.59000 |
