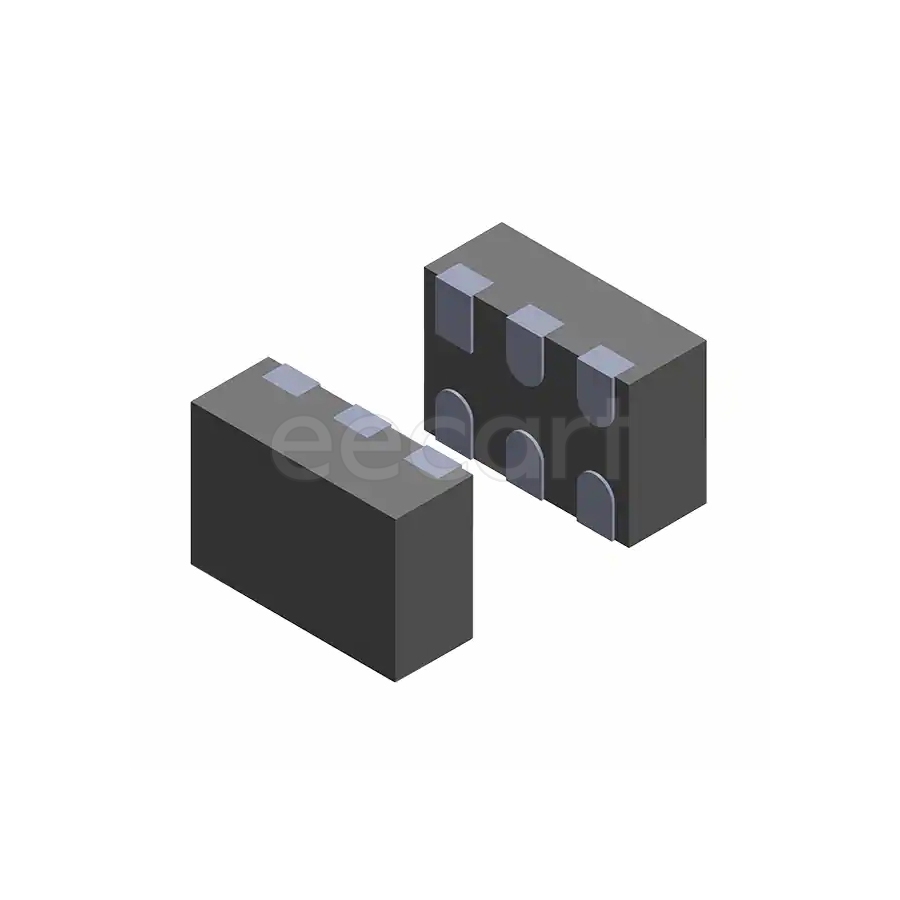

HSP061-2M6
Manufacturer:
STMicroelectronics
Mfr.Part #:
HSP061-2M6
Datasheet:
Description:
TVS Diodes uQFN-6 SMD/SMT Working Voltage:3 V Breakdown Voltage:6 V Clamping Voltage:18 V Polarity:Bidirectional, Unidirectional
| Parameter | Value |
|---|---|
| Capacitance | 300 fF |
| Length | 1.45 mm |
| Width | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Leakage Current | 100 nA |
| Height | 550 µm |
| Packaging | Reel |
| Depth | 1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional, Unidirectional |
| REACH SVHC | No SVHC |
| Working Voltage | 3 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Peak Pulse Current | 30 A |
| Number of Channels | 2 |
| Breakdown Voltage | 6 V |
| Max Reverse Leakage Current | 100 nA |
| Max Repetitive Reverse Voltage (Vrrm) | 3 V |
| Element Configuration | Dual |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 3 V |
| Clamping Voltage | 18 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 2 |
| ESD Protection | Yes |
| Max Breakdown Voltage | 6 V |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 0.85 pF |
Stock: 337
Distributors
pcbx
pcbxUnit Price$0.18922
Ext.Price$0.18922
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18922 | $0.18922 |
| 10 | $0.16704 | $1.67040 |
| 50 | $0.14746 | $7.37300 |
| 100 | $0.12640 | $12.64000 |
| 500 | $0.10835 | $54.17500 |
| 1000 | $0.10371 | $103.71000 |
| 3000 | $0.09927 | $297.81000 |
| 5000 | $0.09320 | $466.00000 |
