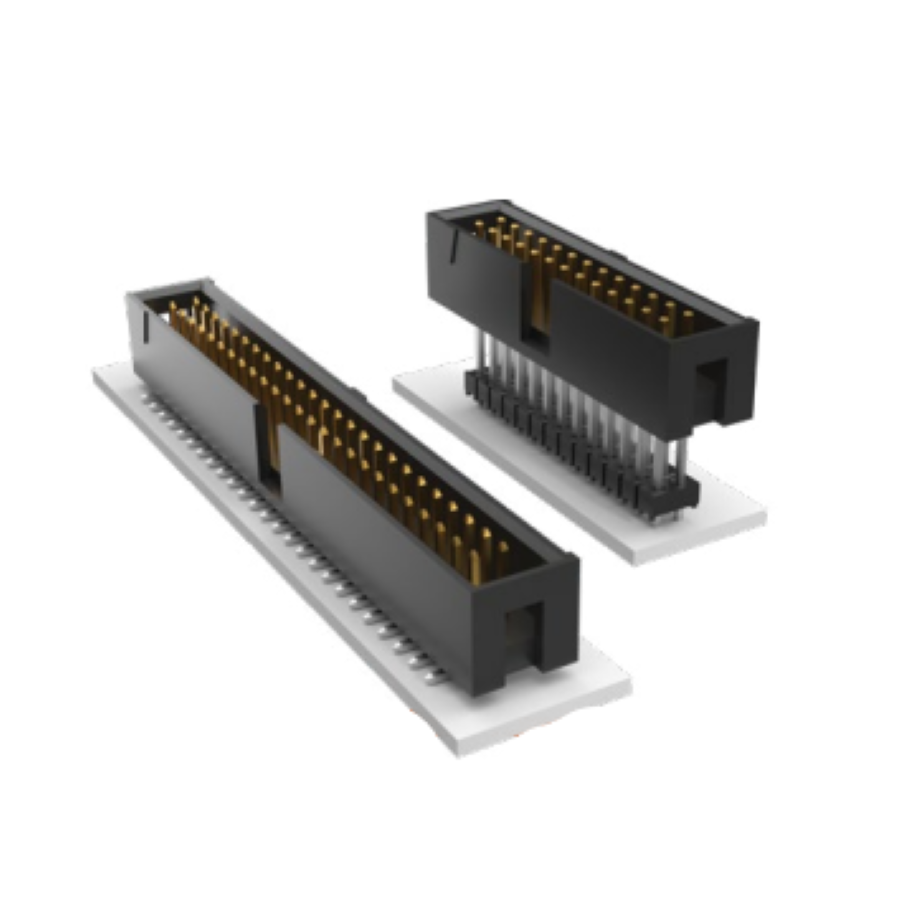

HTST-105-01-L-DV
Manufacturer:
Samtec
Mfr.Part #:
HTST-105-01-L-DV
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Header Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Height | 10.41 mm |
| Packaging | Tube |
| Depth | 9.27 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Current Rating | 3.4 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 10 |
| Connector Type | Header |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polychlorinated |
| Housing Color | Natural |
| Contact Mating Length | 6.35 mm |
| Mating Post Length | 6.35 mm |
Stock: 1336
Distributors
pcbx
pcbxUnit Price$2.03387
Ext.Price$2.03387
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03387 | $2.03387 |
| 10 | $1.76277 | $17.62770 |
| 25 | $1.52781 | $38.19525 |
| 50 | $1.32417 | $66.20850 |
| 100 | $1.14767 | $114.76700 |
| 300 | $0.99470 | $298.41000 |
| 500 | $0.86212 | $431.06000 |
| 1000 | $0.74721 | $747.21000 |
| 3000 | $0.64761 | $1942.83000 |
| 5000 | $0.56129 | $2806.45000 |
| 10000 | $0.48646 | $4864.60000 |
