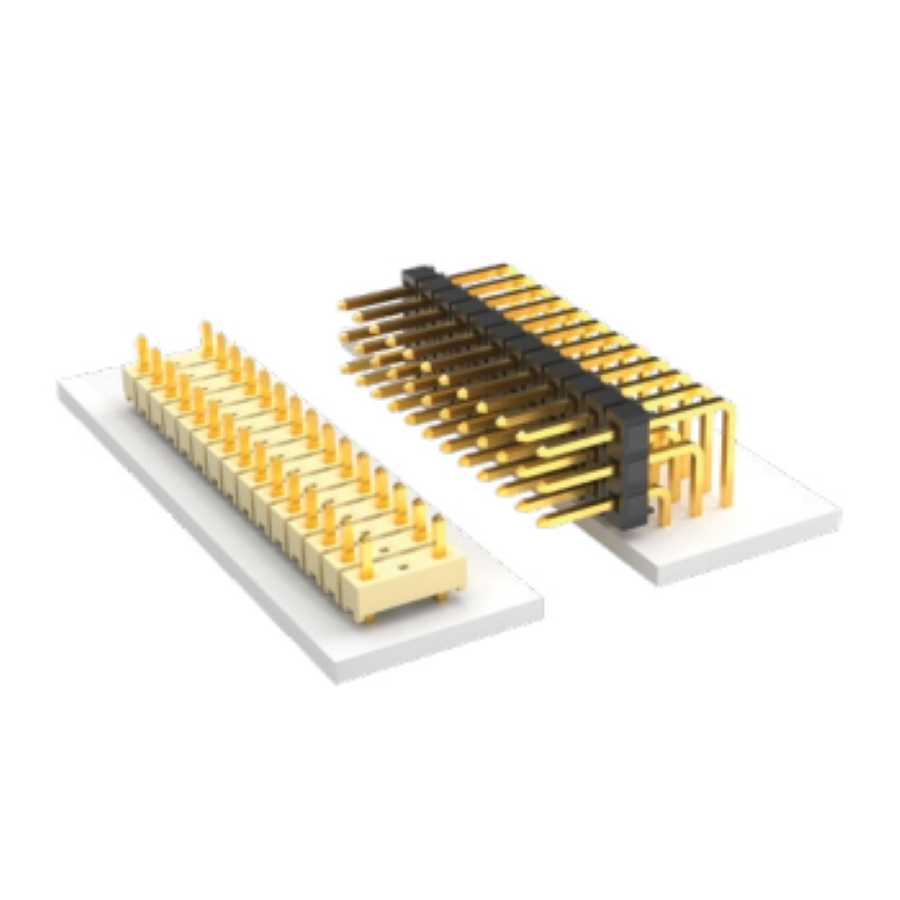

HTSW-102-07-G-S
Manufacturer:
Samtec
Mfr.Part #:
HTSW-102-07-G-S
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.08 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 2.48 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Max Current Rating | 7.6 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 2 |
| Connector Type | Male Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 550 V |
| Housing Color | Natural |
| Contact Mating Length | 5.842 mm |
Stock: 60052
Distributors
pcbx
pcbxUnit Price$0.06279
Ext.Price$0.06279
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06279 | $0.06279 |
| 10 | $0.04381 | $0.43810 |
| 50 | $0.04225 | $2.11250 |
| 100 | $0.04074 | $4.07400 |
| 500 | $0.03851 | $19.25500 |
| 1000 | $0.03756 | $37.56000 |
| 3000 | $0.03643 | $109.29000 |
| 5000 | $0.03533 | $176.65000 |
| 10000 | $0.03439 | $343.90000 |
