HV513WG-G
Manufacturer:
Microchip
Mfr.Part #:
HV513WG-G
Datasheet:
Description:

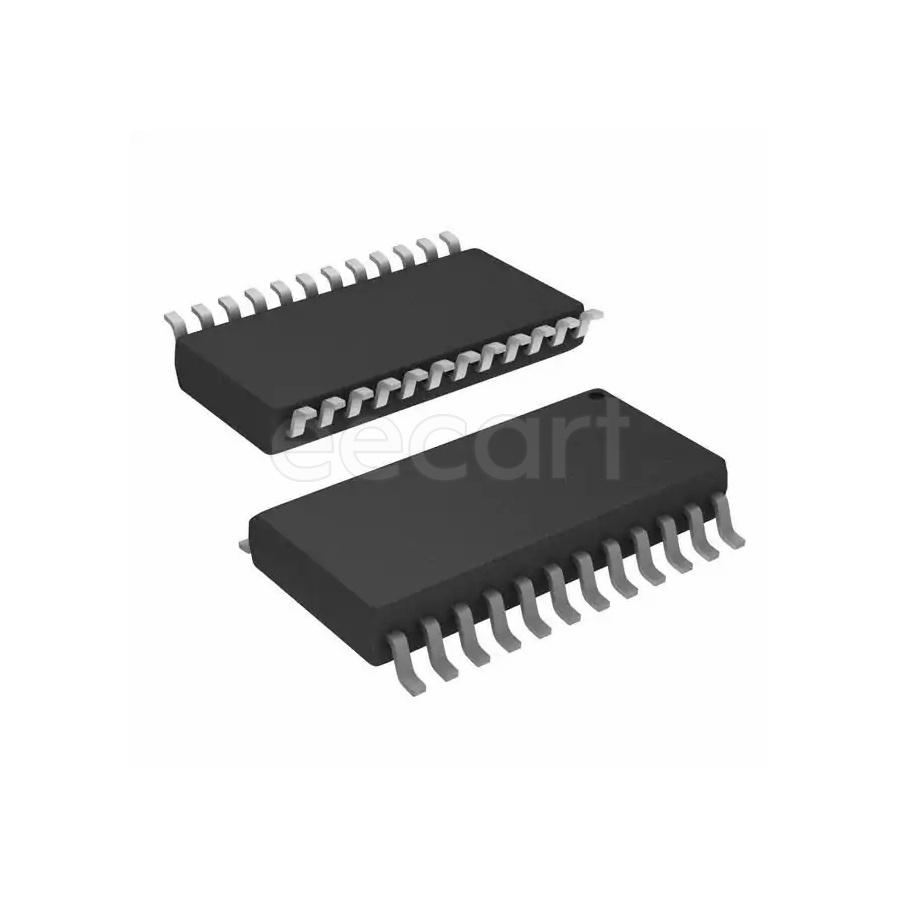

Shift Registers SOIC-24 SMD/SMT Number of Bits per Element:8
| Parameter | Value |
|---|---|
| Length | 15.4 mm |
| Width | 7.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Manufacturer Package Identifier | WG |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Max Power Dissipation | 750 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Number of Channels | 1 |
| Logic Type | HVCMOS |
| Operating Supply Current | 4 mA |
| Propagation Delay | 110 ns |
| Max Supply Current | 100 µA |
| Logic Function | Latch, Shift Register |
| Number of Bits per Element | 8 |
| Direction(Counting Sequence) | Unidirectional |
| Max Frequency | 8 MHz |
| Fall Time | 1 ms |
| Rise Time | 1 ms |
| Nominal Supply Current | 4 mA |
| Number of Input Lines | 6 |
| Number of Output Lines | 9 |
| Schedule B | 8541290080 |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 14
Distributors
pcbx
pcbxUnit Price$5.79859
Ext.Price$5.79859
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.79859 | $5.79859 |
| 10 | $4.98614 | $49.86140 |
| 25 | $4.67875 | $116.96875 |
| 50 | $4.39031 | $219.51550 |
| 100 | $4.11959 | $411.95900 |
