HV5530PG-G
Manufacturer:
Microchip
Mfr.Part #:
HV5530PG-G
Datasheet:
Description:

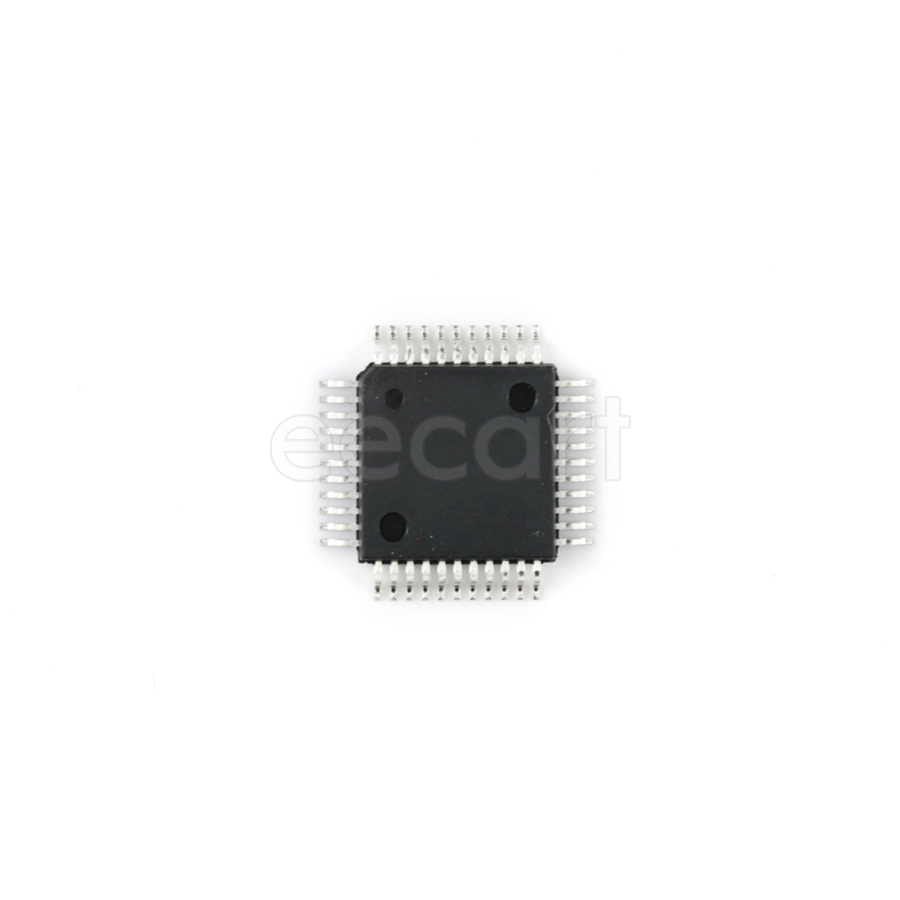

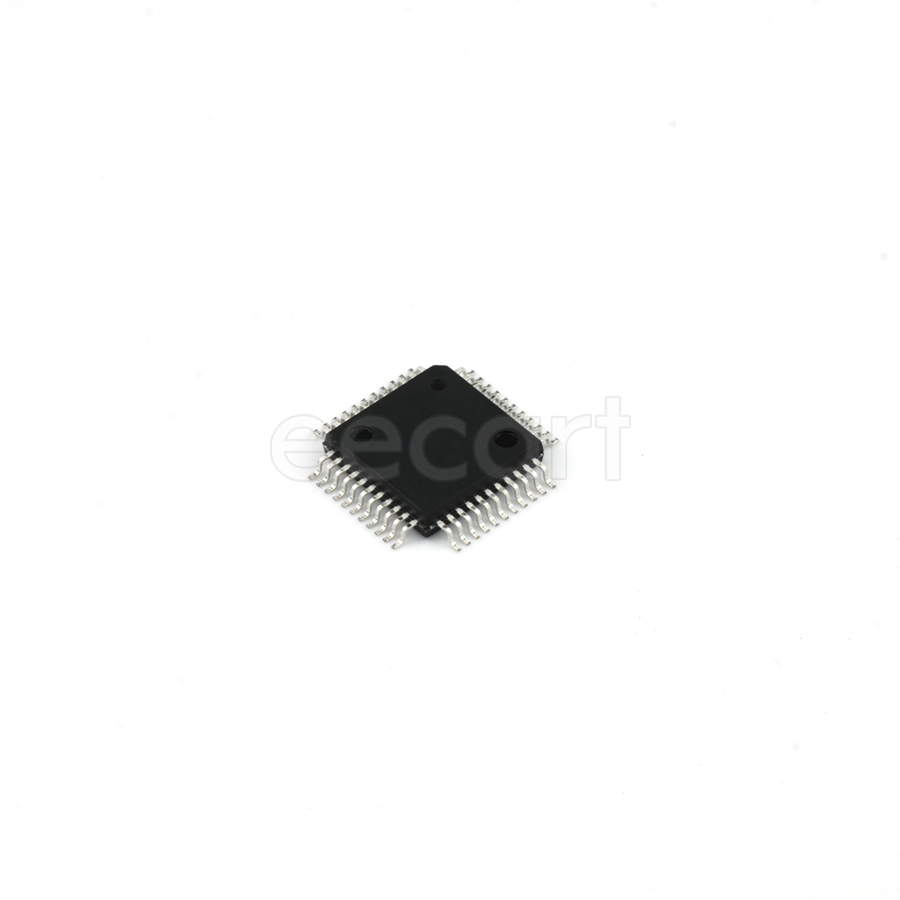

Shift Registers PQFP-44 SMD/SMT Open Drain Number of Bits per Element:32
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 2 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Weight | 498.611413 mg |
| Number of Elements | 1 |
| Operating Supply Voltage | 12 V |
| Output Type | Open Drain |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Supply Voltage | 13.2 V |
| Min Supply Voltage | 10.8 V |
| Logic Type | CMOS |
| Number of Bits | 32 |
| Turn-On Delay Time | 100 ns |
| Propagation Delay | 100 ns |
| Max Supply Current | 100 µA |
| Logic Function | Latch, Shift Register |
| Number of Bits per Element | 32 |
| Direction(Counting Sequence) | Unidirectional |
| Nominal Supply Current | 15 mA |
| Number of Input Lines | 1 |
| Number of Output Lines | 32 |
| Function | Serial to Parallel |
Stock: 5
Distributors
pcbx
pcbxUnit Price$5.80155
Ext.Price$5.80155
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.80155 | $5.80155 |
| 10 | $5.68272 | $56.82720 |
| 25 | $4.73717 | $118.42925 |
| 50 | $4.51929 | $225.96450 |
| 100 | $4.31141 | $431.14100 |
