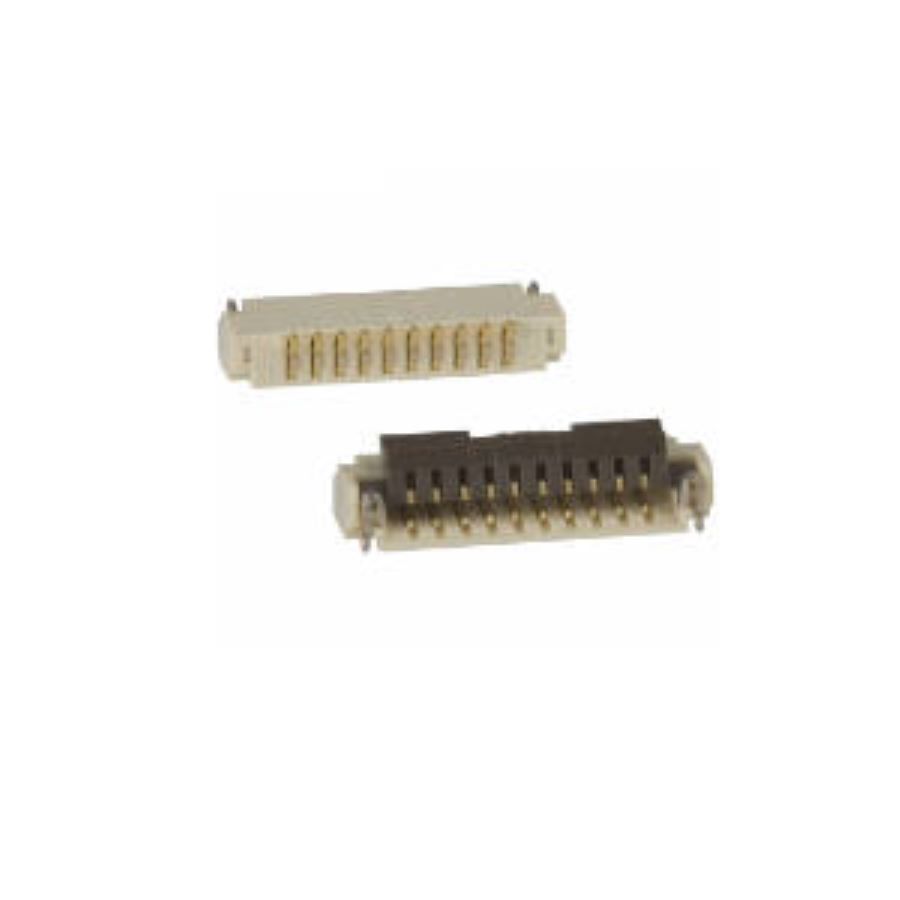

FH33-10S-0.5SH(10)
Manufacturer:
Hirose Electric
Mfr.Part #:
FH33-10S-0.5SH(10)
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:10 500 mA 50 V
| Parameter | Value |
|---|---|
| Length | 7 mm |
| Width | 3 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 1.2 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 2.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze, Gold, Nickel |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Receptacle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Nylon, Polyamide |
| Contact Voltage Rating (AC) | 50 V |
| Contact Voltage Rating (DC) | 50 V |
| Contact Pitch | 0.5 mm |
Stock: 7048
Distributors
pcbx
pcbxUnit Price$0.73842
Ext.Price$0.73842
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73842 | $0.73842 |
| 10 | $0.62500 | $6.25000 |
| 25 | $0.58562 | $14.64050 |
| 50 | $0.55760 | $27.88000 |
| 100 | $0.53100 | $53.10000 |
| 300 | $0.50165 | $150.49500 |
| 500 | $0.47393 | $236.96500 |
| 1000 | $0.45130 | $451.30000 |
| 3000 | $0.43122 | $1293.66000 |
| 5000 | $0.41204 | $2060.20000 |
