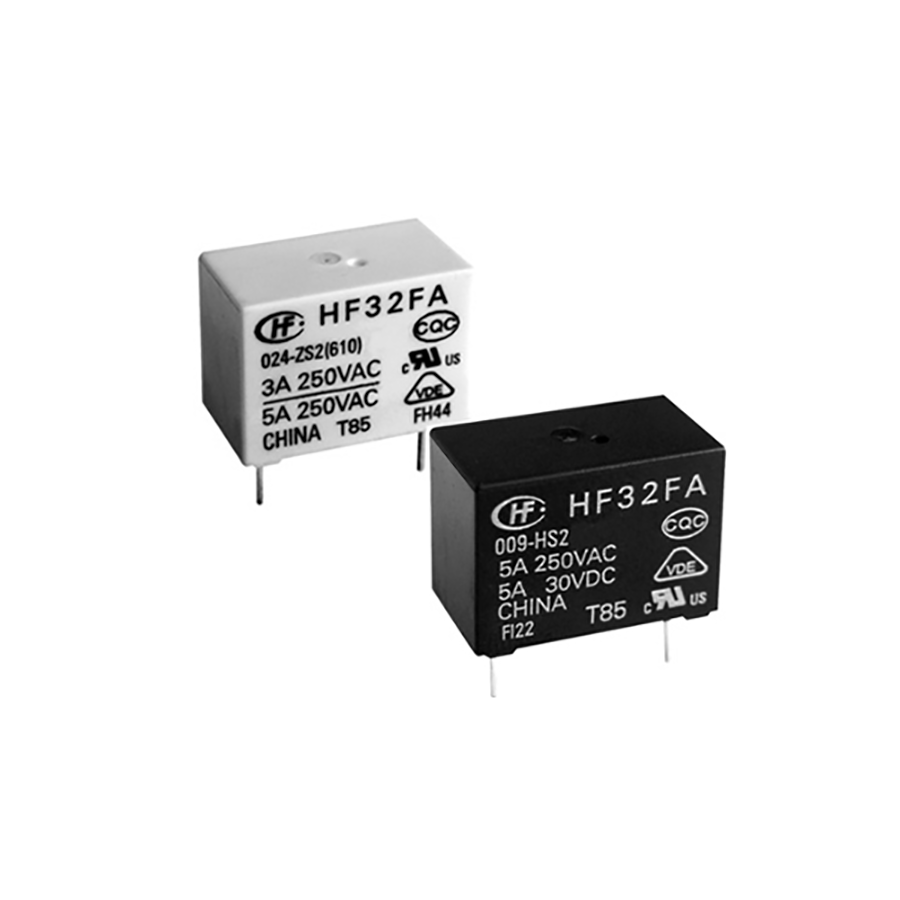

HF32FA/012-HSL1
Manufacturer:
Hongfa
Mfr.Part #:
HF32FA/012-HSL1
Datasheet:
Description:
Power Relays Through Hole 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 17.6 mm |
| Width | 10.1 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.3 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Nickel (AgNi) |
| Coil Voltage (DC) | 12 V |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 8 ms |
| Release Time | 4 ms |
| Contact Current Rating | 5 A |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 30 VDC |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 600 mV |
Stock: 449
Distributors
pcbx
pcbxUnit Price$1.02413
Ext.Price$1.02413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.02413 | $1.02413 |
| 10 | $0.80870 | $8.08700 |
| 25 | $0.73248 | $18.31200 |
| 50 | $0.66345 | $33.17250 |
| 100 | $0.60092 | $60.09200 |
| 300 | $0.56796 | $170.38800 |
| 500 | $0.53680 | $268.40000 |
| 1000 | $0.50401 | $504.01000 |
