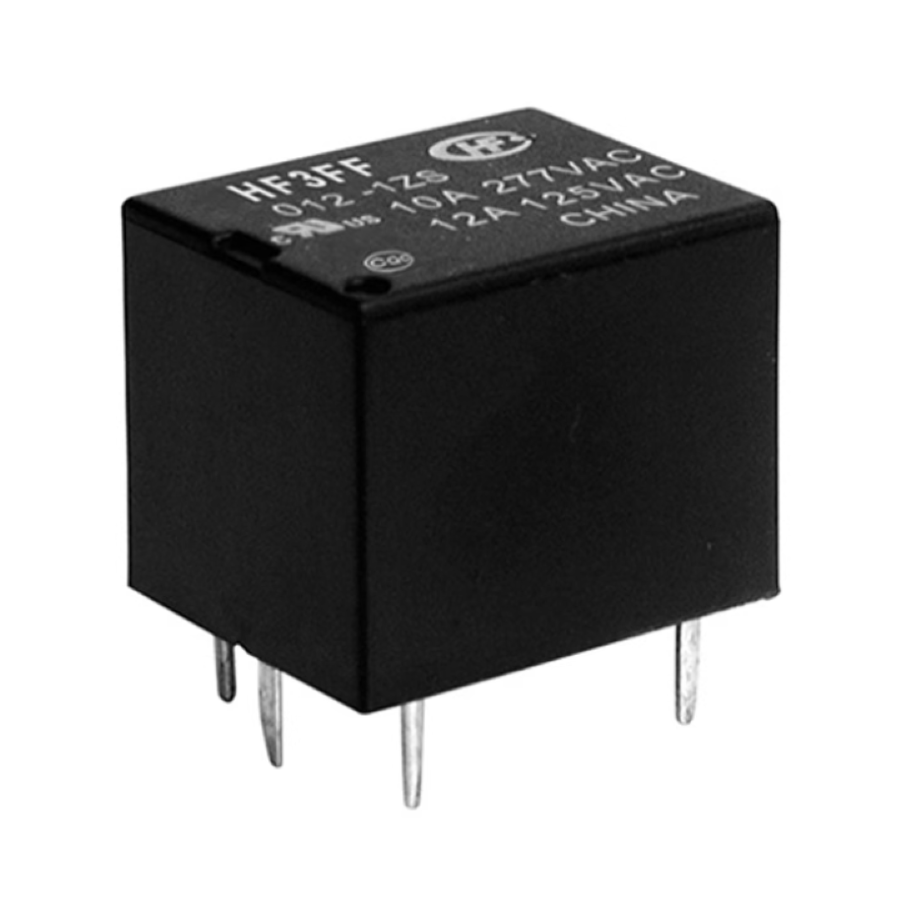

HF3FF/012-1ZS
Manufacturer:
Hongfa
Mfr.Part #:
HF3FF/012-1ZS
Datasheet:
Description:
Power Relays Plug-In 12 V General Purpose
| Parameter | Value |
|---|---|
| Length | 19 mm |
| Width | 15.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 15.5 mm |
| Packaging | Box |
| Contact Material(Contact Finish) | Silver Alloy |
| Coil Voltage (DC) | 12 V |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 10 A |
| Termination Style | PCB |
| Switching Voltage | 277 VAC, 28 VDC |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
Stock: 5904
Distributors
pcbx
pcbxUnit Price$0.81437
Ext.Price$0.81437
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81437 | $0.81437 |
| 10 | $0.62870 | $6.28700 |
| 25 | $0.56387 | $14.09675 |
| 50 | $0.50572 | $25.28600 |
| 100 | $0.45357 | $45.35700 |
| 300 | $0.43083 | $129.24900 |
| 500 | $0.40924 | $204.62000 |
| 1000 | $0.38267 | $382.67000 |
| 3000 | $0.37612 | $1128.36000 |
