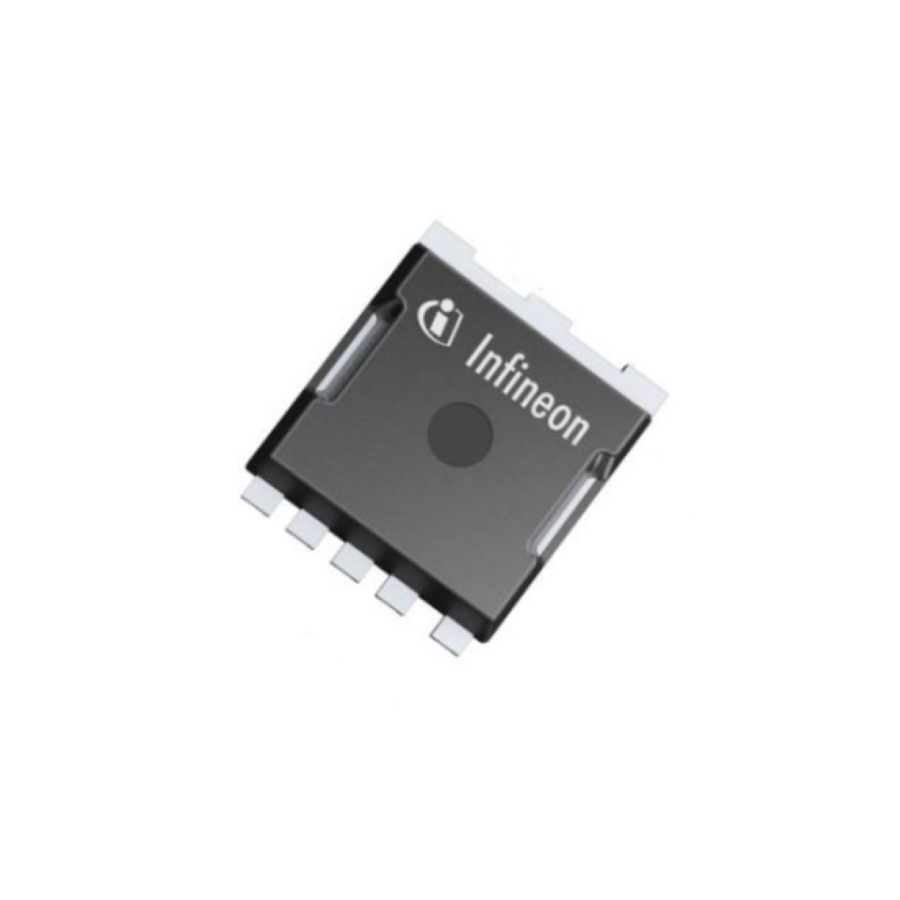

IAUA200N04S5N010
Manufacturer:
Infineon
Mfr.Part #:
IAUA200N04S5N010
Datasheet:
Description:
MOSFETs PG-HSOF-5-1 SMD/SMT N-Channel number of channels:1 167 W 40 V Continuous Drain Current (ID):200 A 99 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 167 W |
| Number of Channels | 1 |
| Input capacitance | 5.75 nF |
| Continuous Drain Current (ID) | 200 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 99 nC |
| Drain to Source Resistance | 900 µΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 40 V |
| Gate to Source Threshold Voltage | 2.8 V |
Stock: 483
Distributors
pcbx
pcbxUnit Price$1.46304
Ext.Price$1.46304
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.46304 | $1.46304 |
| 10 | $1.21613 | $12.16130 |
| 25 | $1.11533 | $27.88325 |
| 50 | $1.02288 | $51.14400 |
| 100 | $0.93809 | $93.80900 |
| 300 | $0.90300 | $270.90000 |
| 500 | $0.86922 | $434.61000 |
| 1000 | $0.83711 | $837.11000 |
