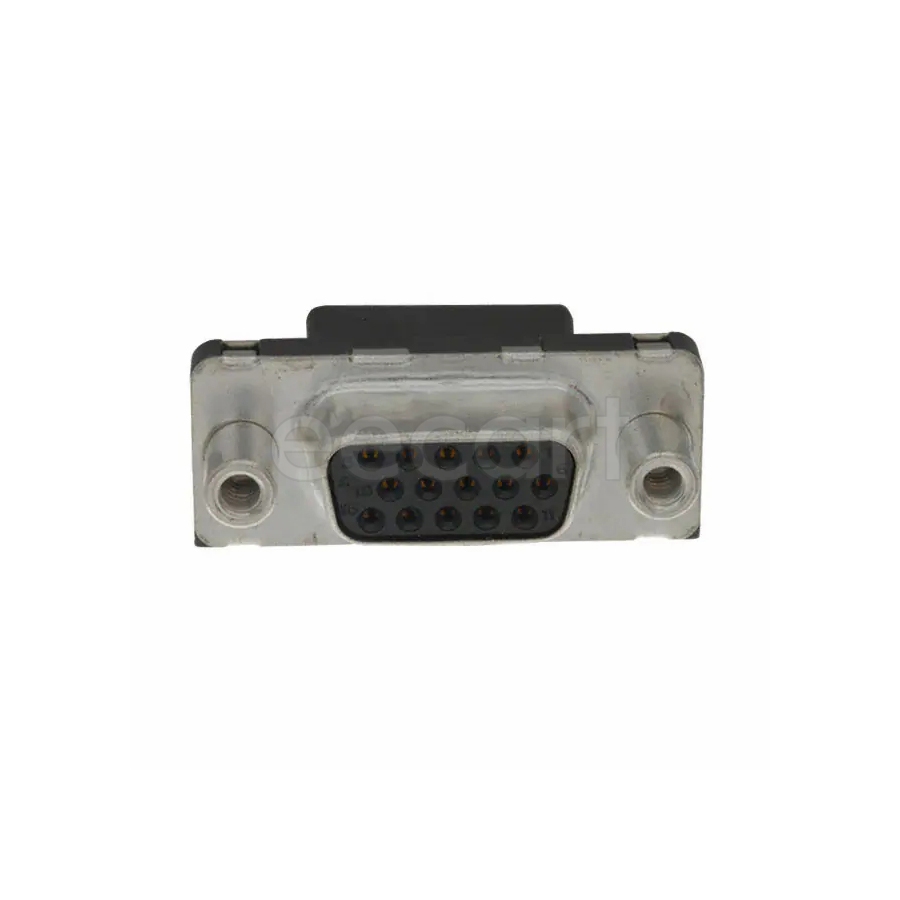

ICD15S13E4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
ICD15S13E4GV00LF
Datasheet:
Description:
D-Sub Connectors Through Hole Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 15 |
| Packaging | Tray |
| Voltage Rating | 300 V |
| Depth | 21.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.28 mm |
| Number of Terminals | 15 |
| Current Rating | 3 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Shell Material | Steel |
Stock: 843
Distributors
pcbx
pcbxUnit Price$0.97034
Ext.Price$0.97034
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97034 | $0.97034 |
| 10 | $0.75747 | $7.57470 |
| 25 | $0.71954 | $17.98850 |
| 50 | $0.68351 | $34.17550 |
| 100 | $0.64929 | $64.92900 |
| 300 | $0.61678 | $185.03400 |
| 500 | $0.58590 | $292.95000 |
| 1000 | $0.55656 | $556.56000 |
