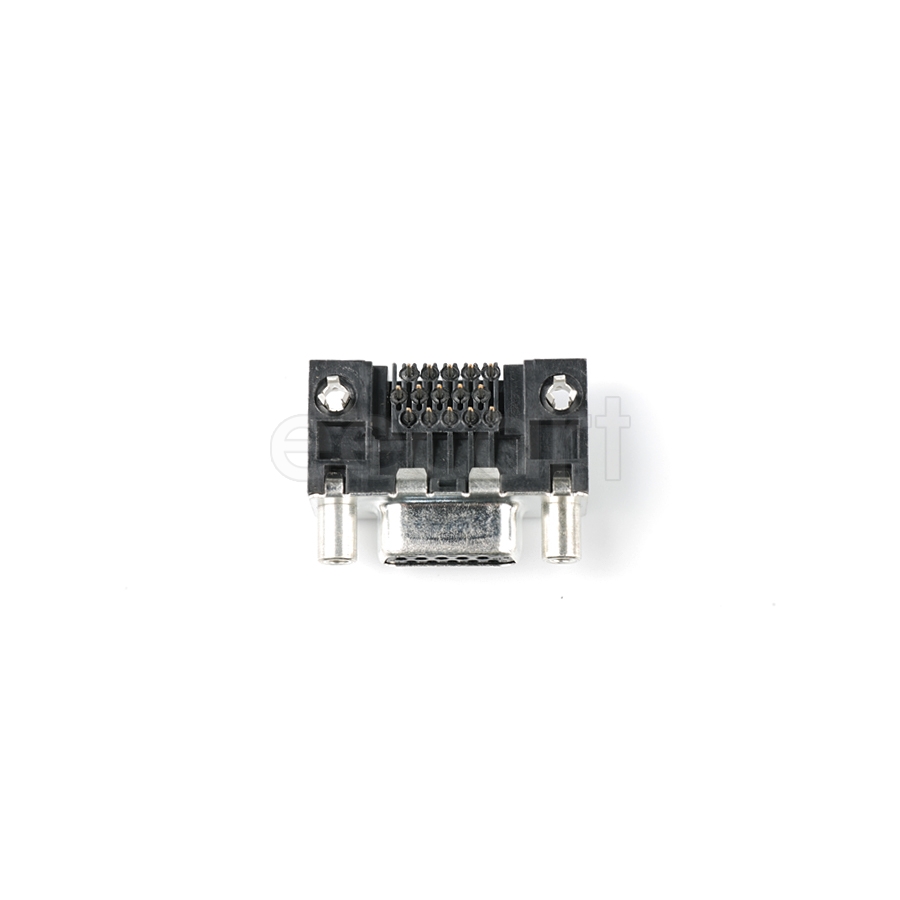

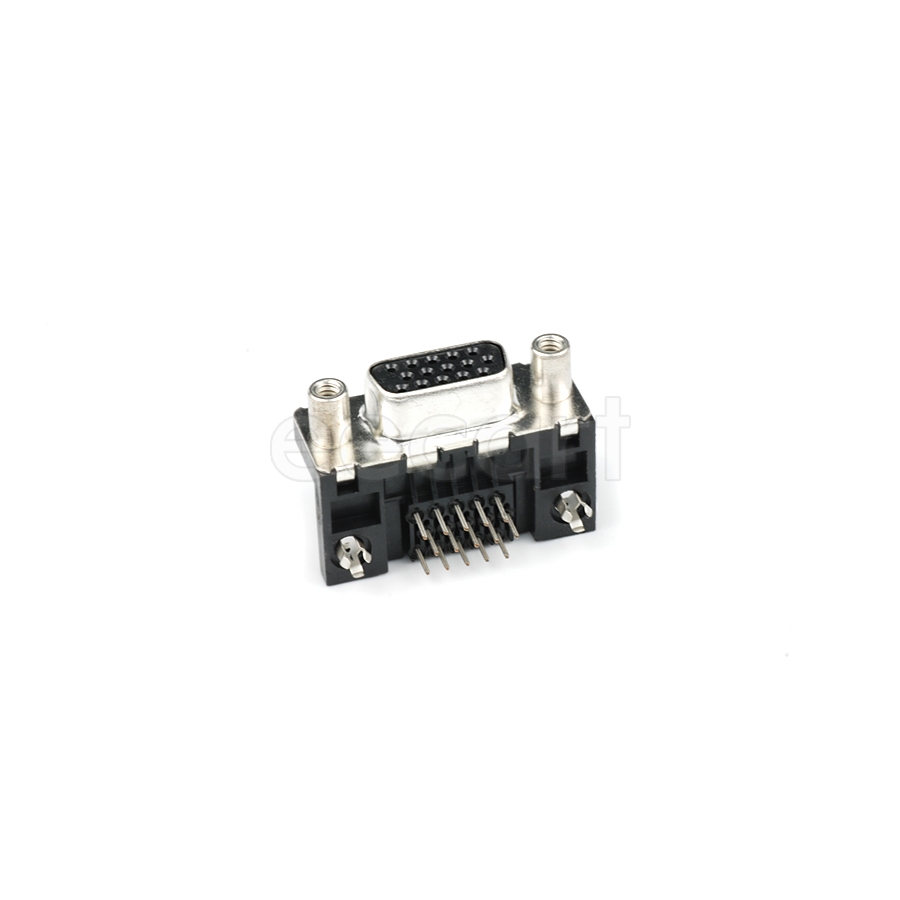

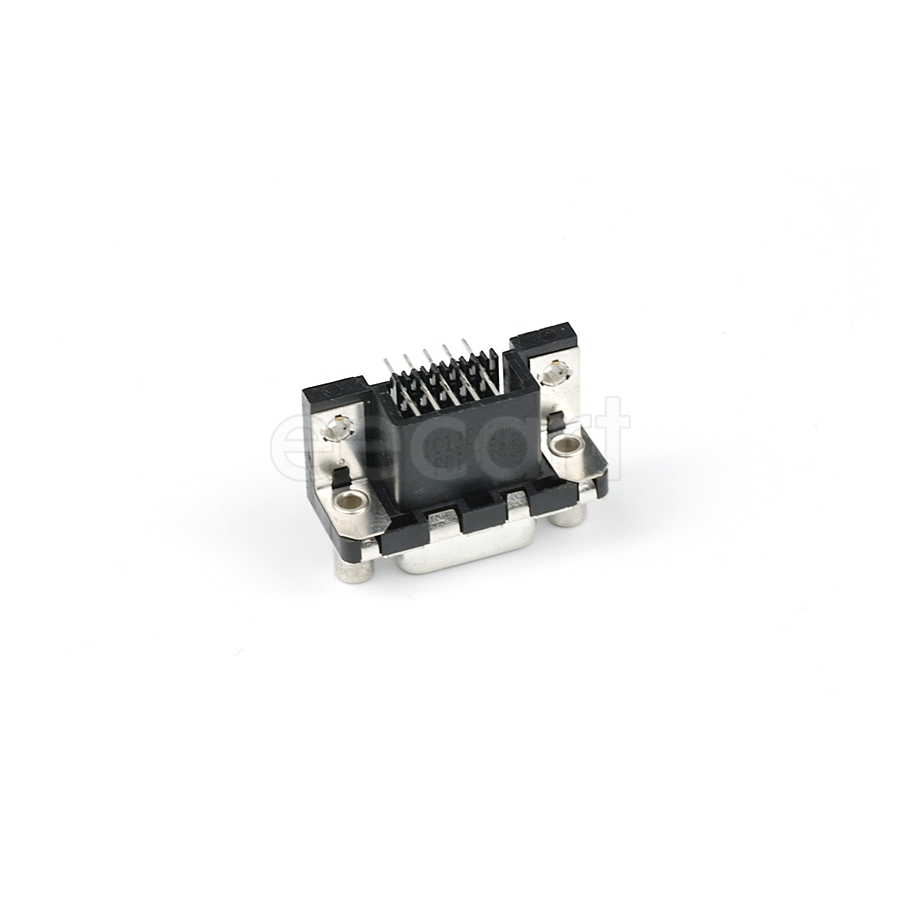

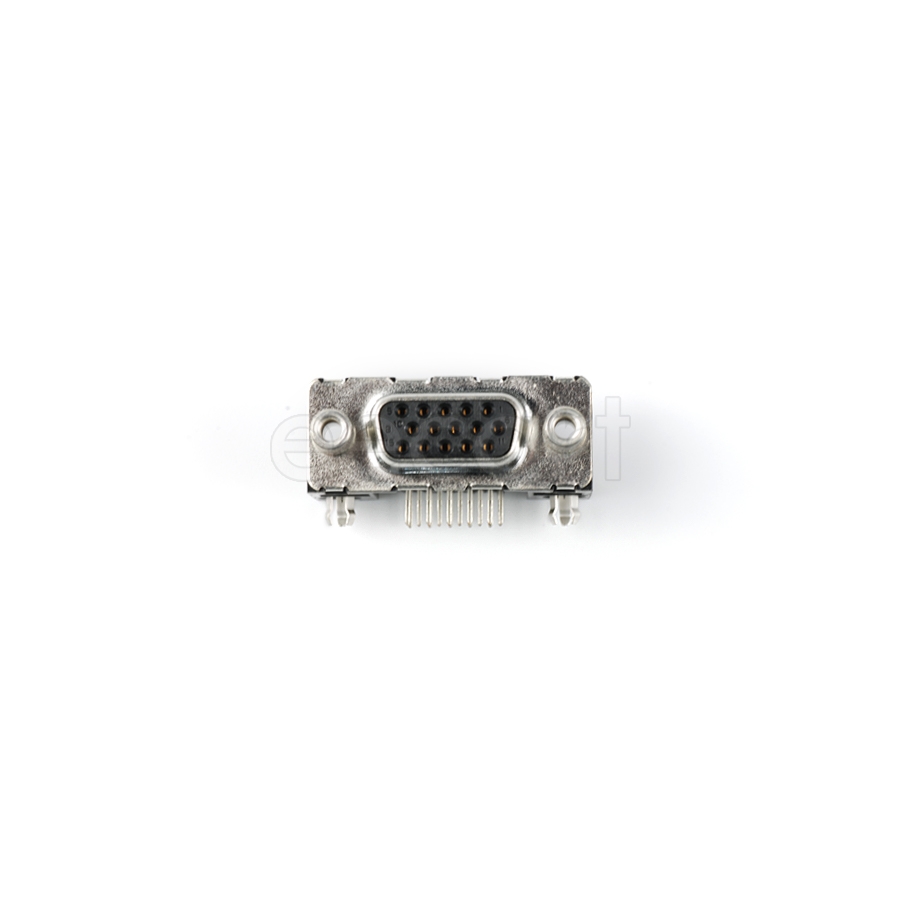

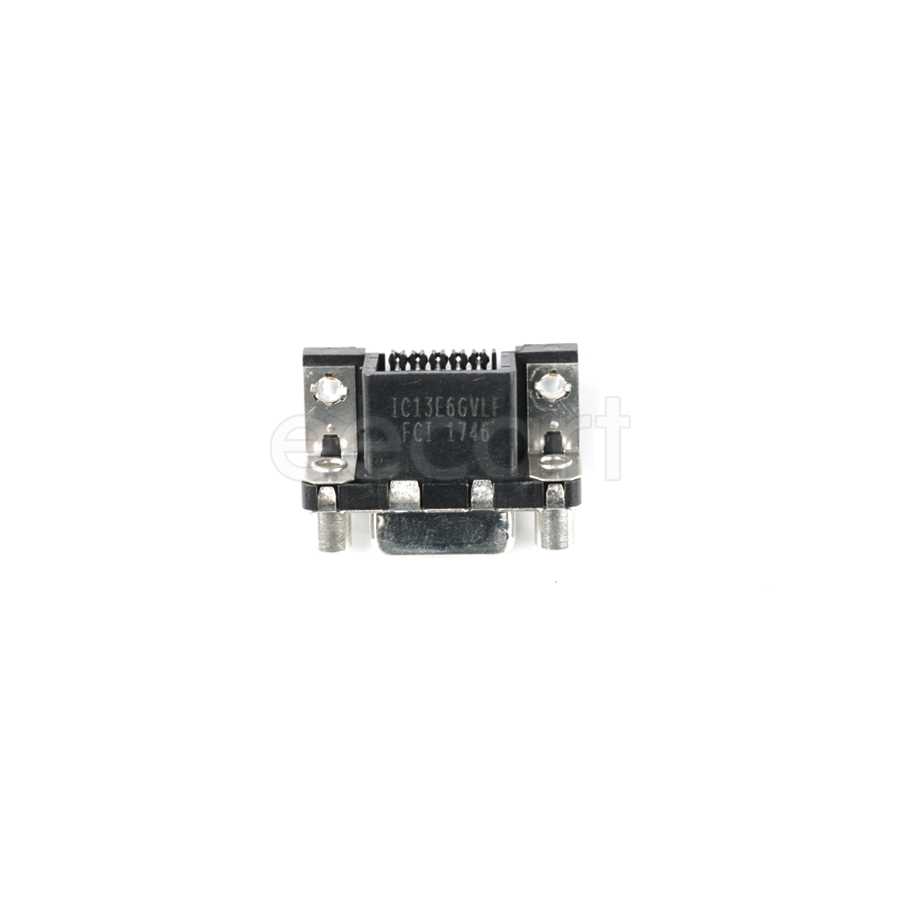

ICD15S13E6GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
ICD15S13E6GV00LF
Datasheet:
Description:
D-Sub Connectors Through Hole Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Width | 12.58 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 21.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.28 mm |
| Number of Terminals | 15 |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Body Material | Metal, Steel |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Housing Material | Steel |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Housing Color | Black |
| Plating | Chrome, Steel, Tin |
| Shell Material | Steel |
Stock: 177
Distributors
pcbx
pcbxUnit Price$1.03276
Ext.Price$1.03276
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03276 | $1.03276 |
| 10 | $1.01993 | $10.19930 |
| 25 | $0.98970 | $24.74250 |
| 50 | $0.96037 | $48.01850 |
| 100 | $0.93191 | $93.19100 |
| 300 | $0.90429 | $271.28700 |
| 500 | $0.87749 | $438.74500 |
| 1000 | $0.85151 | $851.51000 |
