ICD15S13E6GX00LF
Manufacturer:
Amphenol
Mfr.Part #:
ICD15S13E6GX00LF
Datasheet:
Description:

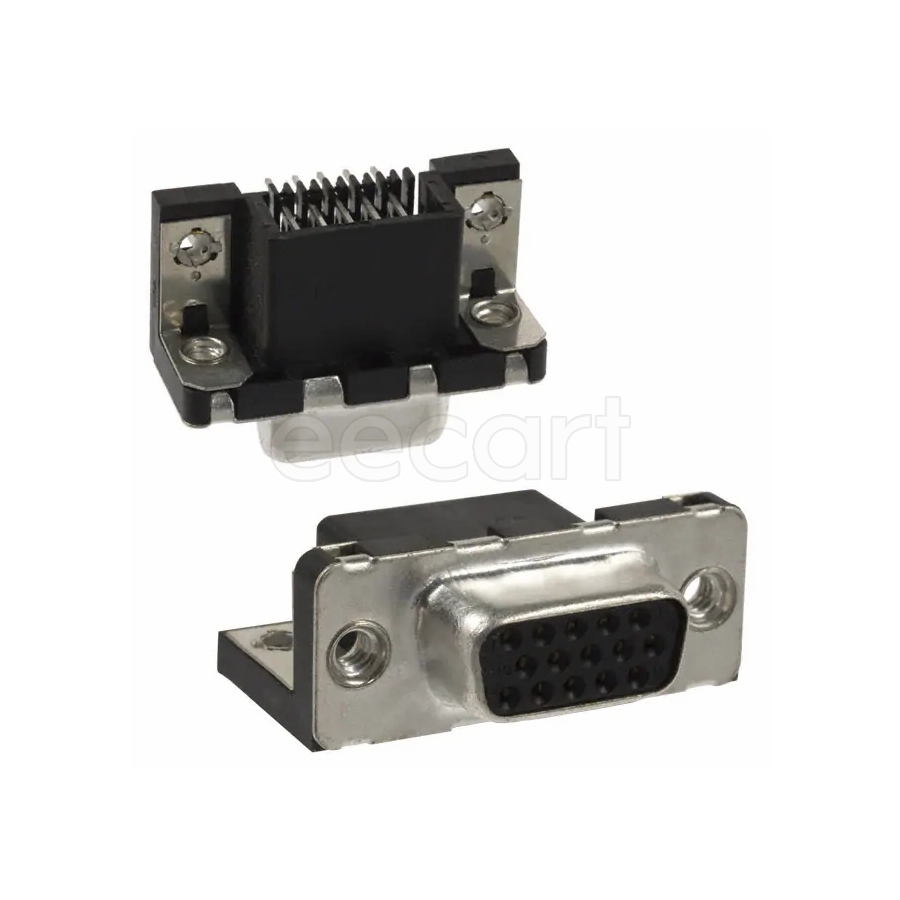

D-Sub Connectors Through Hole Number of Positions:15 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Width | 12.58 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 21.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 2.28 mm |
| Number of Terminals | 15 |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 15 |
| Body Material | Metal, Steel |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Housing Color | Black |
| Contact Gender | Female |
| Shell Material | Tin |
Stock: 167
Distributors
pcbx
pcbxUnit Price$2.13989
Ext.Price$2.13989
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.13989 | $2.13989 |
| 10 | $1.86460 | $18.64600 |
| 25 | $1.70790 | $42.69750 |
| 50 | $1.56437 | $78.21850 |
| 100 | $1.43290 | $143.29000 |
| 300 | $1.31248 | $393.74400 |
| 500 | $1.20218 | $601.09000 |
| 1000 | $1.10115 | $1101.15000 |
