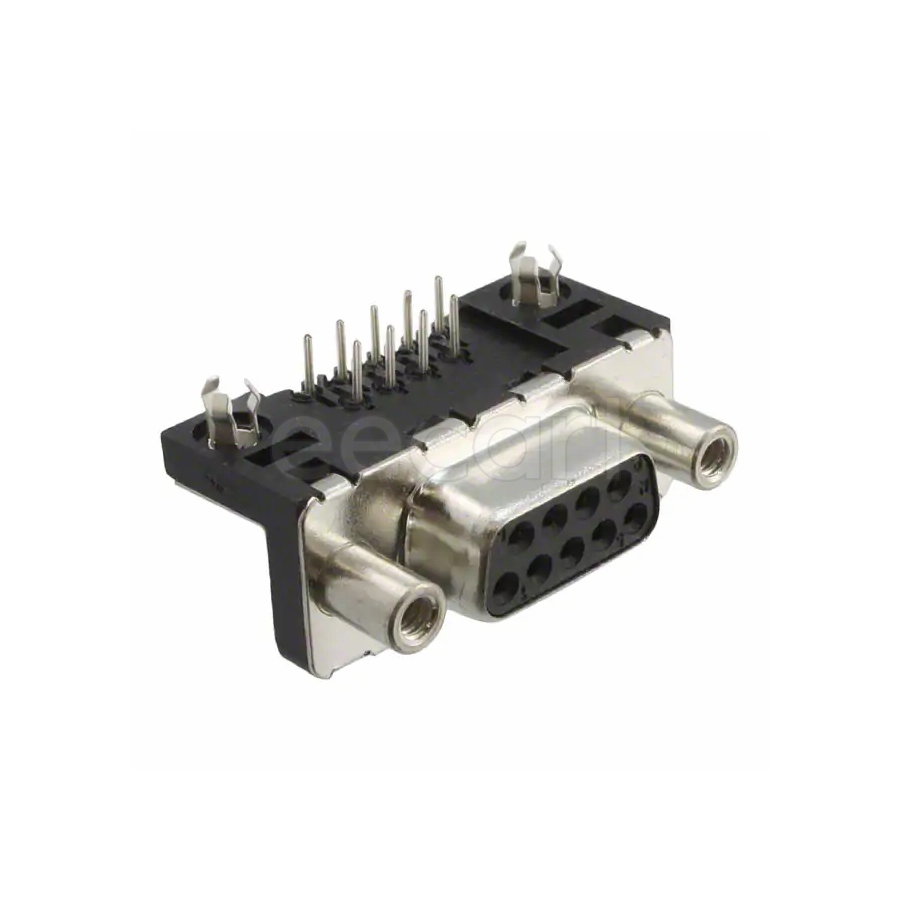

ID09S33E4GV00LF
Manufacturer:
Amphenol
Mfr.Part #:
ID09S33E4GV00LF
Datasheet:
Description:
D-Sub Connectors Through Hole Receptacle Number of Positions:9 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.81 mm |
| Width | 12.5 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 18.65 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.74 mm |
| Type | Receptacle |
| Number of Terminals | 9 |
| Current Rating | 5 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 9 |
| Connector Type | D-Sub, Receptacle, Signal |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Shell Material | Steel |
Stock: 728
Distributors
pcbx
pcbxUnit Price$0.76345
Ext.Price$0.76345
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.76345 | $0.76345 |
| 10 | $0.65744 | $6.57440 |
| 25 | $0.59332 | $14.83300 |
| 50 | $0.55570 | $27.78500 |
| 100 | $0.52580 | $52.58000 |
| 300 | $0.49751 | $149.25300 |
| 500 | $0.47074 | $235.37000 |
| 1000 | $0.44542 | $445.42000 |
