IFSC1008ABER1R0M01
Manufacturer:
Vishay
Mfr.Part #:
IFSC1008ABER1R0M01
Datasheet:
Description:

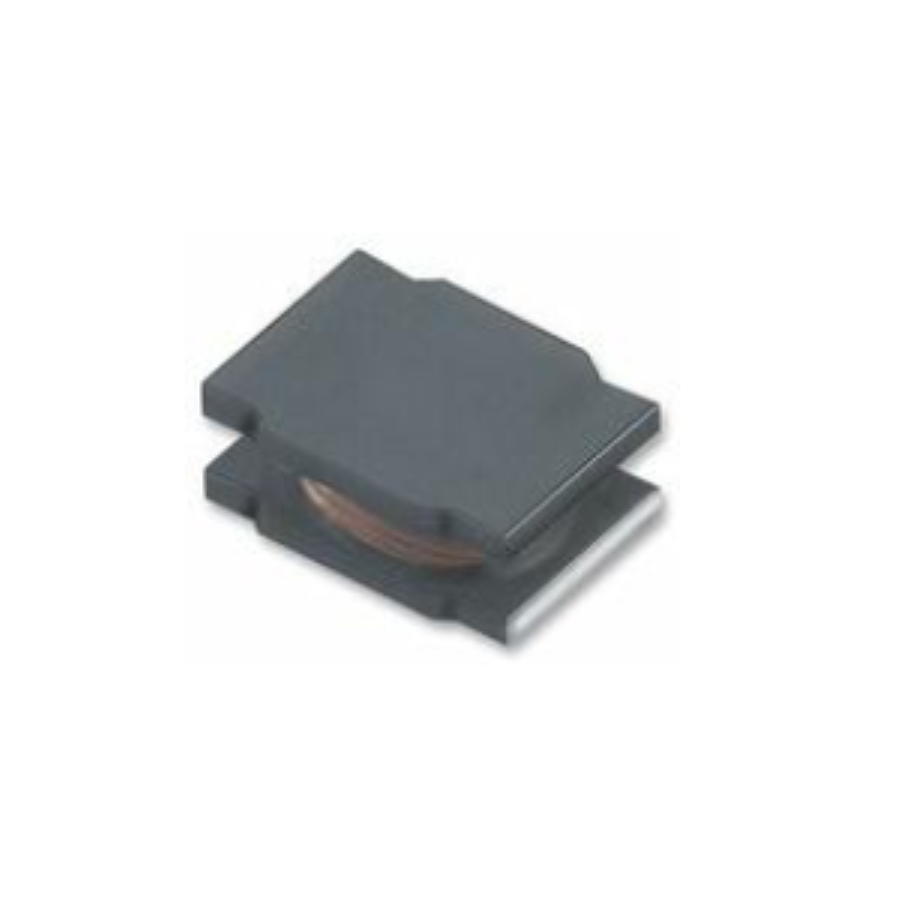

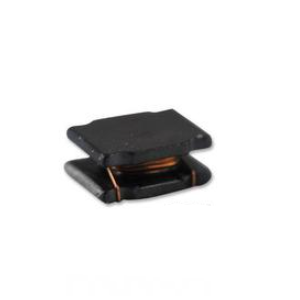

Fixed Inductors 1008(2520 Metric) SMD/SMT 1 µH 20 % 2.6 A 43 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 2.7 mm |
| Width | 2.0066 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Number of Pins | 2 |
| Height | 1.2 mm |
| Depth | 2.2 mm |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Current Rating | 2.6 A |
| DC Resistance (DCR) | 43 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 1 µH |
| RMS Current (Irms) | 2.6 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.7 A |
| Saturation Current | 2.7 A |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 5842
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.21373 | $2.13730 |
| 50 | $0.19401 | $9.70050 |
| 100 | $0.17611 | $17.61100 |
| 500 | $0.15618 | $78.09000 |
| 1000 | $0.13850 | $138.50000 |
| 3000 | $0.13223 | $396.69000 |
| 5000 | $0.12625 | $631.25000 |
| 10000 | $0.12054 | $1205.40000 |
