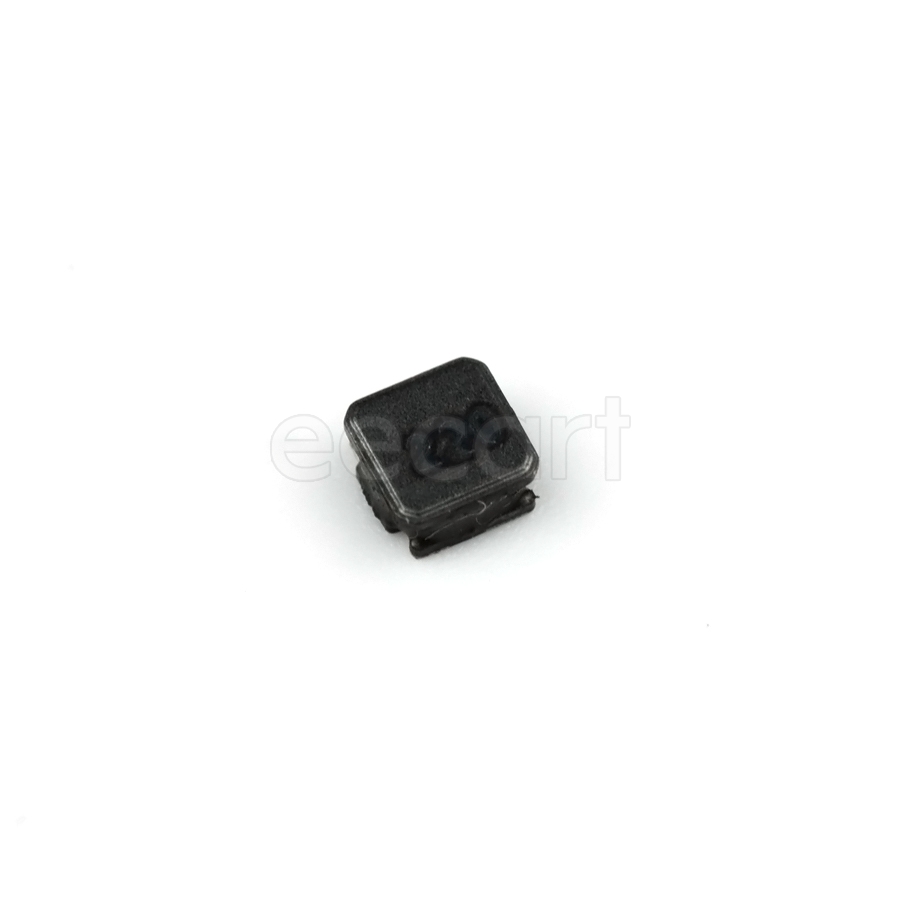

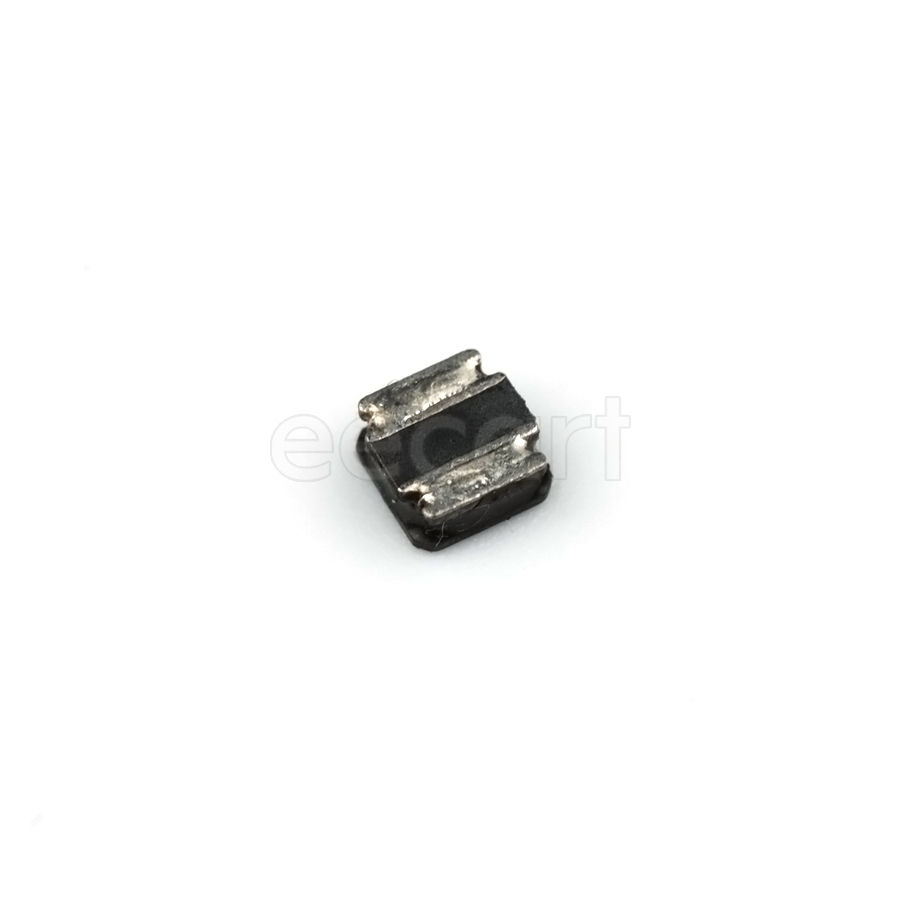

IFSC1515AHER220M01
Manufacturer:
Vishay
Mfr.Part #:
IFSC1515AHER220M01
Datasheet:
Description:
Fixed Inductors 3.80mmL×3.80mmW×1.90mmH SMD/SMT 22 µH 20 % 1.2 A 315 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.9 mm |
| Length | 3.81 mm |
| Width | 3.81 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 1.8 mm |
| Packaging | Reel |
| Depth | 4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 315 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 22 µH |
| RMS Current (Irms) | 1.2 A |
| inductance tolerance | 20 % |
| Max DC Current | 830 mA |
| Saturation Current | 830 mA |
| Schedule B | 8504500000 |
Stock: 5367
Distributors
pcbx
pcbxUnit Price$0.20006
Ext.Price$0.20006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20006 | $0.20006 |
| 10 | $0.16500 | $1.65000 |
| 25 | $0.15628 | $3.90700 |
| 50 | $0.14802 | $7.40100 |
| 100 | $0.14021 | $14.02100 |
| 300 | $0.13488 | $40.46400 |
| 500 | $0.12975 | $64.87500 |
| 1000 | $0.12482 | $124.82000 |
