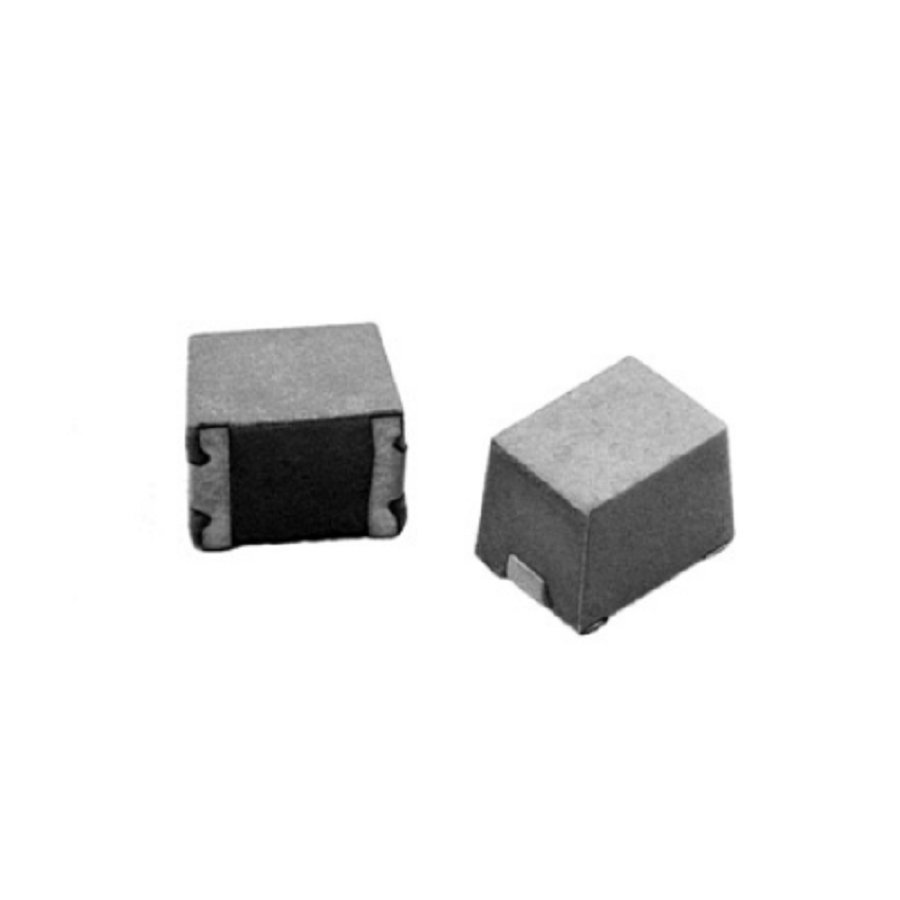

IMC1812ER102K
Manufacturer:
Vishay
Mfr.Part #:
IMC1812ER102K
Datasheet:
Description:
Fixed Inductors 1812(4532 Metric) SMD/SMT 1 mH 10 % 30 mA 40 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 3.41 mm |
| Length | 4.4958 mm |
| Width | 3.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Composition(Kit Type) | Wirewound |
| Height | 3.2 mm |
| Packaging | Reel |
| Depth | 3.4 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Self Resonant Frequency | 2.5 MHz |
| Type | Wirewound |
| Q Factor | 30 |
| Current | 150 mA |
| Current Rating | 30 mA |
| DC Resistance (DCR) | 40 Ω |
| Test Frequency | 250 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 1 mH |
| Core Material | Ferrite |
| Max DC Current | 30 mA |
| DC Current | 30 mA |
| Saturation Current | 1.2 A |
| Schedule B | 8504500000 |
Stock: 626
Distributors
pcbx
pcbxUnit Price$0.96350
Ext.Price$0.96350
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96350 | $0.96350 |
| 10 | $0.81390 | $8.13900 |
| 25 | $0.75063 | $18.76575 |
| 50 | $0.66011 | $33.00550 |
| 100 | $0.58050 | $58.05000 |
| 300 | $0.54569 | $163.70700 |
| 500 | $0.51296 | $256.48000 |
| 1000 | $0.48047 | $480.47000 |
| 3000 | $0.46703 | $1401.09000 |
| 5000 | $0.45397 | $2269.85000 |
