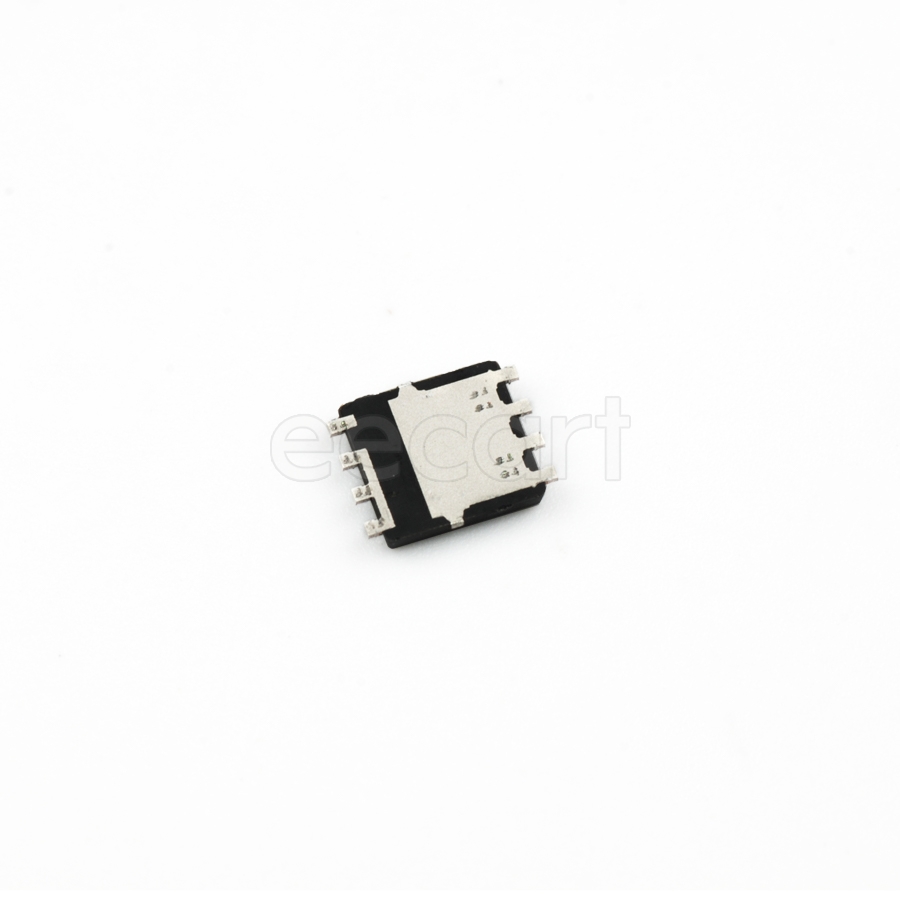

IPC100N04S5L1R5ATMA1
Manufacturer:
Infineon
Mfr.Part #:
IPC100N04S5L1R5ATMA1
Datasheet:
Description:
MOSFETs PG-TDSON-8-34 SMD/SMT N-Channel number of channels:1 115 W 40 V Continuous Drain Current (ID):100 A 95 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Power Dissipation | 115 W |
| Number of Channels | 1 |
| Input capacitance | 5.340 nF |
| Continuous Drain Current (ID) | 100 A |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge | 95 nC |
| Drain to Source Resistance | 1.5 mΩ |
| Gate to Source Voltage (Vgs) | -16 V, 16 V |
| Drain to Source Breakdown Voltage (Vds) | 40 V |
| On-State Resistance | 2.1 mΩ |
| Package Quantity | 5000 |
| Gate to Source Threshold Voltage | 1.6 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 3107
Distributors
pcbx
pcbxUnit Price$1.37016
Ext.Price$1.37016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.37016 | $1.37016 |
| 10 | $0.87906 | $8.79060 |
| 25 | $0.77259 | $19.31475 |
| 50 | $0.67901 | $33.95050 |
| 100 | $0.59678 | $59.67800 |
| 300 | $0.53293 | $159.87900 |
| 500 | $0.47591 | $237.95500 |
| 1000 | $0.45683 | $456.83000 |
| 3000 | $0.41292 | $1238.76000 |
| 5000 | $0.37323 | $1866.15000 |
