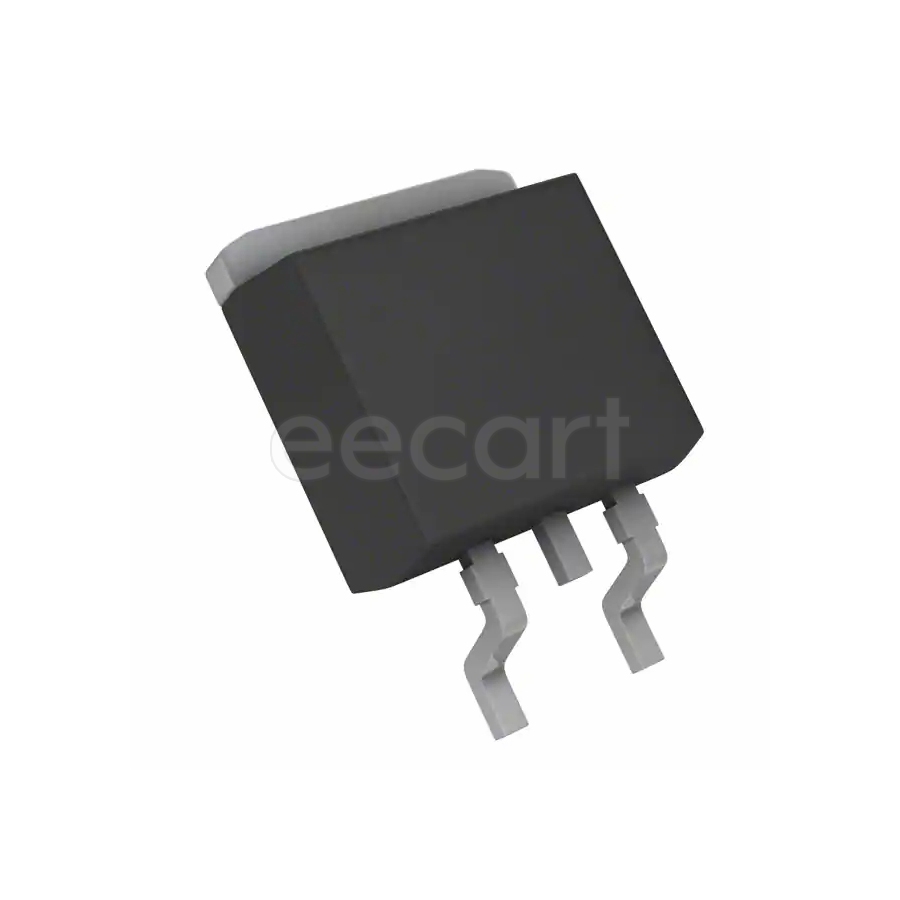

IPD50P04P413ATMA1
Manufacturer:
Infineon
Mfr.Part #:
IPD50P04P413ATMA1
Datasheet:
Description:
MOSFETs PG-TO252-3-313 SMD/SMT P-Channel number of channels:1 58 W -40 V Continuous Drain Current (ID):-50 A 39 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 2.5 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Lifecycle Status | NRND (Last Updated: 10 months ago) |
| Max Power Dissipation | 58 W |
| Power Dissipation | 58 W |
| Number of Channels | 1 |
| Input capacitance | 3.67 nF |
| Continuous Drain Current (ID) | -50 A |
| Rds On Max | 12.6 mΩ |
| Drain to Source Voltage (Vdss) | -40 V |
| Turn-On Delay Time | 17 ns |
| Turn-Off Delay Time | 22 ns |
| Rise Time | 10 ns |
| Gate Charge | 39 nC |
| Drain to Source Resistance | 9.2 mΩ |
| Max Junction Temperature (Tj) | 175 °C |
| Max Dual Supply Voltage | -40 V |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | -40 V |
| On-State Resistance | 12.6 mΩ |
| Schedule B | 8541290080 |
| Package Quantity | 2500 |
| Gate to Source Threshold Voltage | 4 V |
| FET Type(Transistor Polarity) | P-Channel |
Stock: 15115
Distributors
pcbx
pcbxUnit Price$1.18858
Ext.Price$1.18858
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18858 | $1.18858 |
| 10 | $1.15028 | $11.50280 |
| 25 | $1.11321 | $27.83025 |
| 50 | $1.07733 | $53.86650 |
| 100 | $0.97616 | $97.61600 |
| 300 | $0.90422 | $271.26600 |
| 500 | $0.83759 | $418.79500 |
| 1000 | $0.68207 | $682.07000 |
