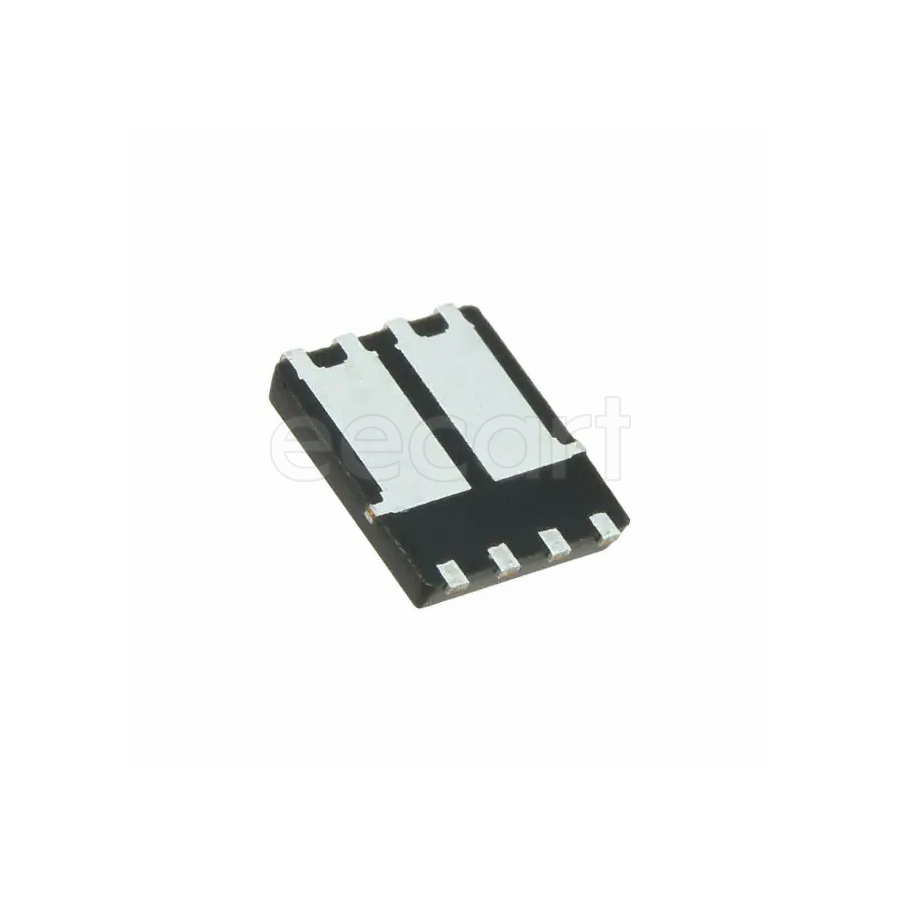

IPG20N06S4L14ATMA2
Manufacturer:
Infineon
Mfr.Part #:
IPG20N06S4L14ATMA2
Datasheet:
Description:
MOSFETs PG-TDSON-8-4 SMD/SMT N-Channel number of channels:2 50 W 60 V Continuous Drain Current (ID):20 A 30 nC
| Parameter | Value |
|---|---|
| Length | 5.15 mm |
| Width | 6.15 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 50 W |
| Power Dissipation | 50 W |
| Number of Channels | 2 |
| Input capacitance | 2.22 nF |
| Continuous Drain Current (ID) | 20 A |
| Rds On Max | 13.7 mΩ |
| Drain to Source Voltage (Vdss) | 60 V |
| Turn-On Delay Time | 8 ns |
| Turn-Off Delay Time | 40 ns |
| Element Configuration | Dual |
| Fall Time | 15 ns |
| Rise Time | 2 ns |
| Gate Charge | 30 nC |
| Drain to Source Resistance | 11.6 mΩ |
| Max Junction Temperature (Tj) | 175 °C |
| Max Dual Supply Voltage | 60 V |
| Gate to Source Voltage (Vgs) | 16 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| On-State Resistance | 13.7 mΩ |
| Package Quantity | 5000 |
| Gate to Source Threshold Voltage | 1.7 V |
| Drain to Source Breakdown Voltage | 60 V |
| FET Type(Transistor Polarity) | N-Channel |
