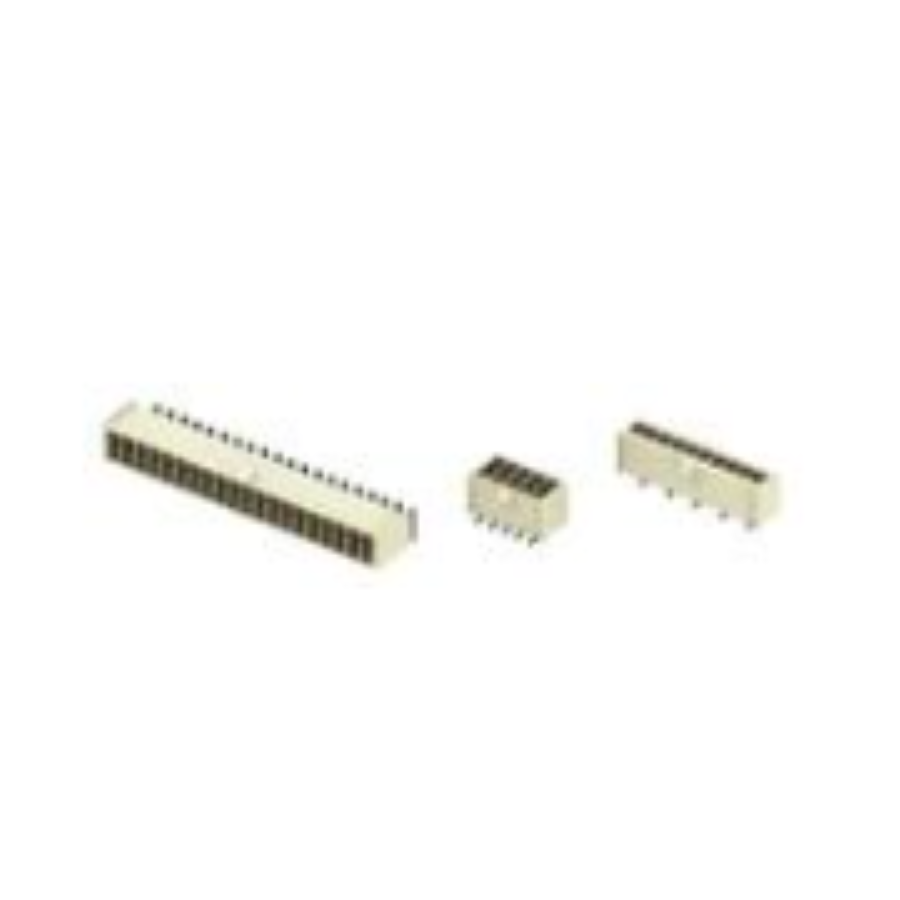

IPL1-104-01-L-D-K
Manufacturer:
Samtec
Mfr.Part #:
IPL1-104-01-L-D-K
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:8 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 11.68 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Number of Terminals | 8 |
| Max Current Rating | 7.4 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Pin (Male) |
| Number of Contacts | 8 |
| Connector Type | Header |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Max Voltage Rating (AC) | 675 V |
| Contact Mating Length | 5.461 mm |
| Mating Post Length | 5.5 mm |
| Termination Post Length | 3.05 mm |
Stock: 2339
Distributors
pcbx
pcbxUnit Price$1.50180
Ext.Price$1.50180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50180 | $1.50180 |
| 10 | $1.46013 | $14.60130 |
| 25 | $1.41961 | $35.49025 |
| 50 | $1.38022 | $69.01100 |
| 100 | $1.34192 | $134.19200 |
| 300 | $1.19176 | $357.52800 |
| 500 | $1.05840 | $529.20000 |
| 1000 | $0.97020 | $970.20000 |
| 3000 | $0.84445 | $2533.35000 |
| 5000 | $0.73500 | $3675.00000 |
| 10000 | $0.67278 | $6727.80000 |
