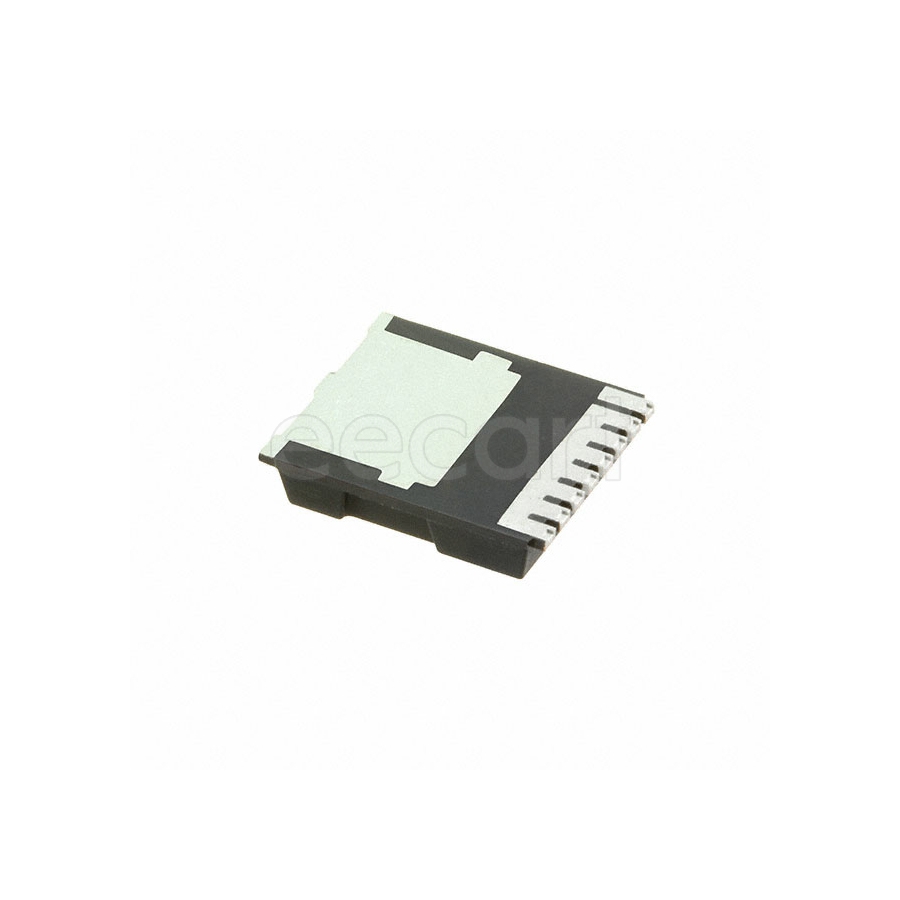

IPLU300N04S4-R8
Manufacturer:
Infineon
Mfr.Part #:
IPLU300N04S4-R8
Datasheet:
Description:
MOSFETs PG-HSOF-8-1 SMD/SMT N-Channel number of channels:1 429 W 40 V Continuous Drain Current (ID):300 A 221 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 429 W |
| Number of Channels | 1 |
| Input capacitance | 22.945 nF |
| Continuous Drain Current (ID) | 300 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 221 nC |
| Drain to Source Resistance | 770 µΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 40 V |
| Gate to Source Threshold Voltage | 2 V |
Stock: 119
Distributors
pcbx
pcbxUnit Price$2.45654
Ext.Price$2.45654
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.45654 | $2.45654 |
| 10 | $2.10672 | $21.06720 |
| 25 | $1.95432 | $48.85800 |
| 50 | $1.81295 | $90.64750 |
| 100 | $1.68179 | $168.17900 |
| 300 | $1.63051 | $489.15300 |
| 500 | $1.58081 | $790.40500 |
| 1000 | $1.53638 | $1536.38000 |
