IPN60R3K4CEATMA1
Manufacturer:
Infineon
Mfr.Part #:
IPN60R3K4CEATMA1
Datasheet:
Description:

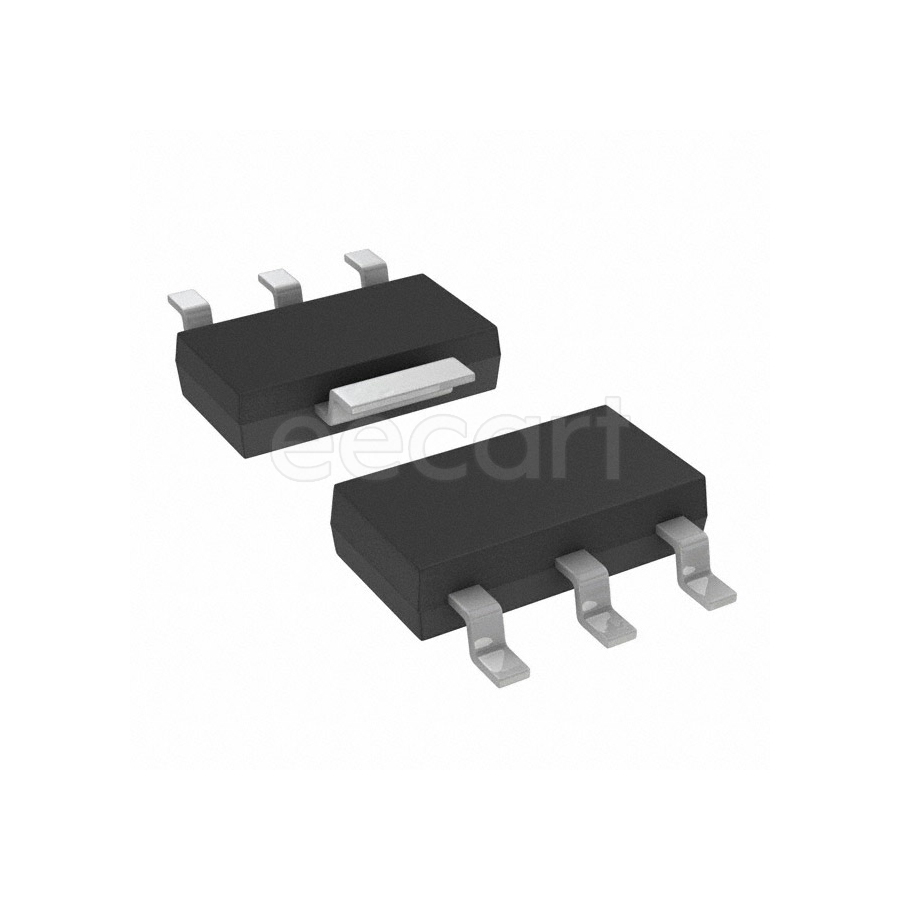

MOSFETs PG-SOT-223 SMD/SMT N-Channel number of channels:1 5 W 600 V Continuous Drain Current (ID):2.6 A 4.6 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.4 A |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Power Dissipation | 5 W |
| Power Dissipation | 5 W |
| Threshold Voltage | 3 V |
| Number of Channels | 1 |
| Input capacitance | 93 pF |
| Continuous Drain Current (ID) | 2.6 A |
| Rds On Max | 3.4 Ω |
| Drain to Source Voltage (Vdss) | 600 V |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 4.6 nC |
| Drain to Source Resistance | 3.06 Ω |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 600 V |
| On-State Resistance | 3.4 Ω |
| Schedule B | 8541290080 |
| Package Quantity | 3000 |
| Gate to Source Threshold Voltage | 2.5 V |
Stock: 3646
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.26076 | $2.60760 |
| 50 | $0.20903 | $10.45150 |
| 100 | $0.16757 | $16.75700 |
| 500 | $0.12739 | $63.69500 |
| 1000 | $0.11456 | $114.56000 |
| 3000 | $0.09575 | $287.25000 |
| 5000 | $0.07198 | $359.90000 |
