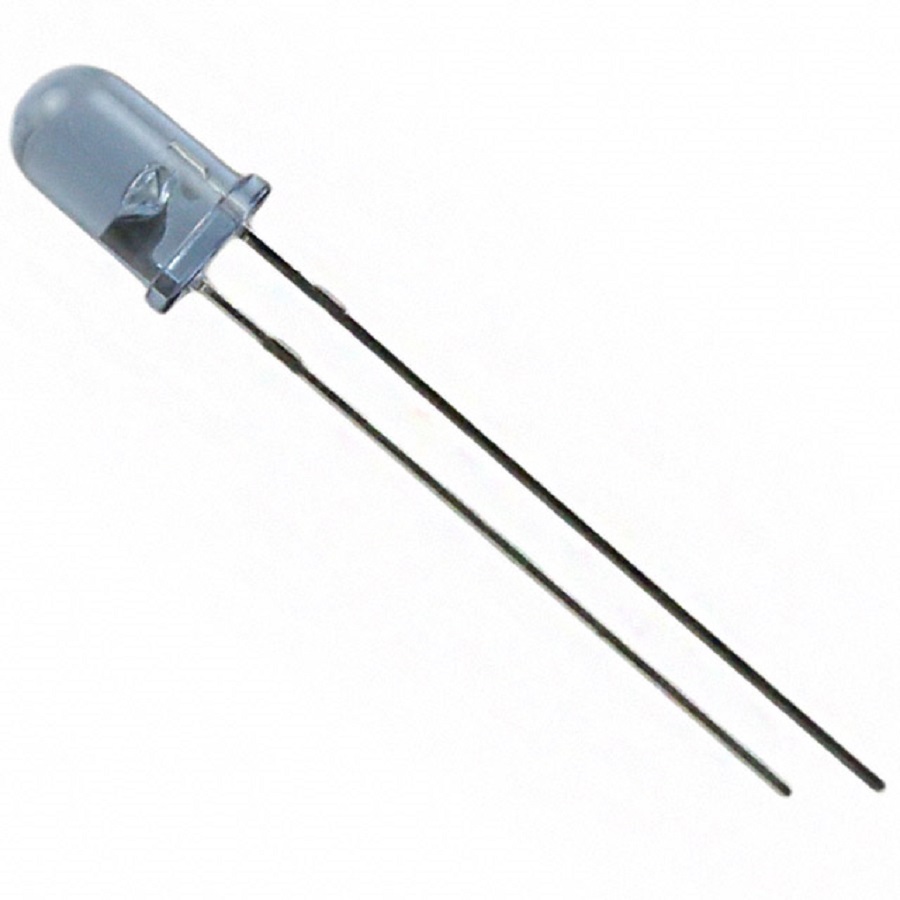

IR333-A
Manufacturer:
Everlight
Mfr.Part #:
IR333-A
Datasheet:
Description:
LEDs 5.00mmD×8.60mmH Through Hole Infrared 940 nm 100 mA 1.2 V
| Parameter | Value |
|---|---|
| Length | 5.9 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Depth | 5.9 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Number of Elements | 1 |
| Orientation | Top View |
| Forward Current | 100 mA |
| Forward Voltage | 1.2 V |
| Max Power Dissipation | 100 mW |
| Illumination Color | Infrared |
| Lens Style | Colored, Dome, Round |
| Power Dissipation | 100 mW |
| Number of LEDs | 1 |
| Viewing Angle | 20 ° |
| Wavelength | 940 nm |
| Lens Color | Blue |
| Dominant Wavelength/CCT (K) | 940 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
Stock: 10401
Distributors
pcbx
pcbxUnit Price$0.10388
Ext.Price$0.10388
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10388 | $0.10388 |
| 10 | $0.05194 | $0.51940 |
| 50 | $0.04628 | $2.31400 |
| 100 | $0.04123 | $4.12300 |
| 500 | $0.03541 | $17.70500 |
| 1000 | $0.03123 | $31.23000 |
| 3000 | $0.02964 | $88.92000 |
| 5000 | $0.02813 | $140.65000 |
| 10000 | $0.02646 | $264.60000 |
