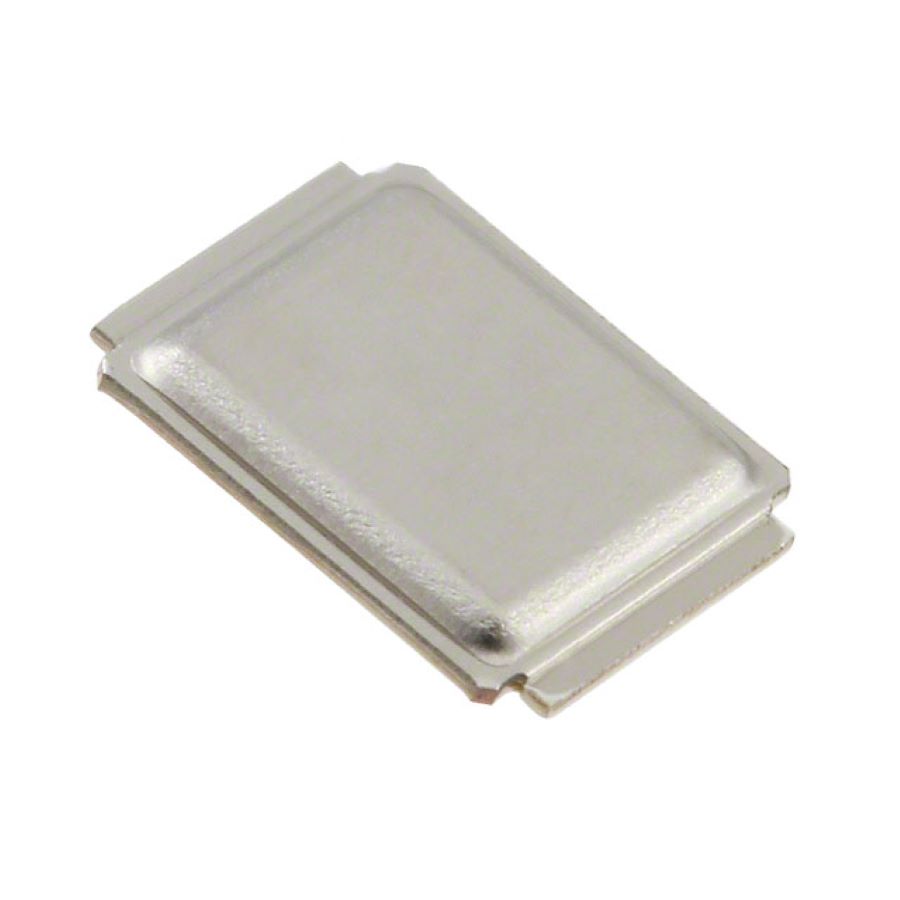

IRF7769L1TRPBF
Manufacturer:
Infineon
Mfr.Part #:
IRF7769L1TRPBF
Datasheet:
Description:
MOSFETs DIRECTFET SMD/SMT N-Channel number of channels:1 125 W 100 V 200 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 125 W |
| Number of Channels | 1 |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 200 nC |
| Drain to Source Resistance | 2.8 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 4 V |
Stock: 10042
Distributors
pcbx
pcbxUnit Price$2.05269
Ext.Price$2.05269
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.05269 | $2.05269 |
| 10 | $1.74577 | $17.45770 |
| 25 | $1.68314 | $42.07850 |
| 50 | $1.62276 | $81.13800 |
| 100 | $1.56452 | $156.45200 |
| 300 | $1.52645 | $457.93500 |
| 500 | $1.48929 | $744.64500 |
| 1000 | $1.41406 | $1414.06000 |
| 3000 | $1.34396 | $4031.88000 |
| 5000 | $1.27733 | $6386.65000 |
| 10000 | $1.21400 | $12140.00000 |
