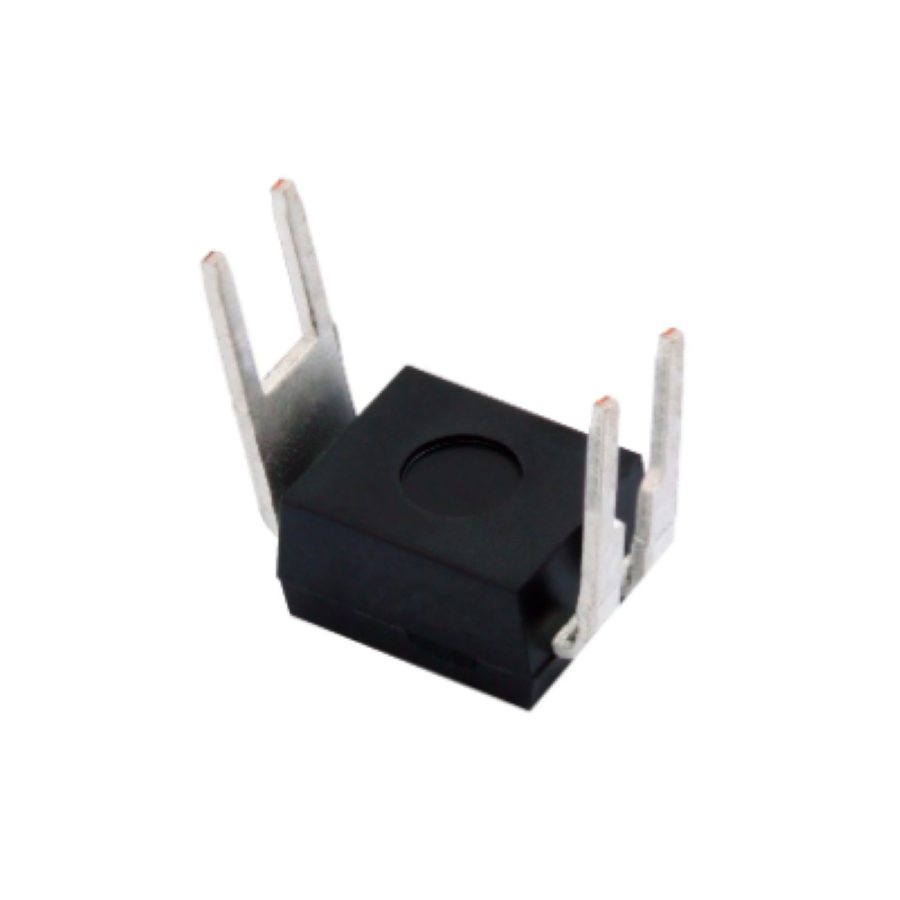

IRFD024PBF
Manufacturer:
Vishay
Mfr.Part #:
IRFD024PBF
Datasheet:
Description:
MOSFETs DIP-4 Through Hole N-Channel number of channels:1 1.3 W 60 V Continuous Drain Current (ID):2.5 A 25 nC
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 5 mm |
| Width | 6.29 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Resistance | 100 mΩ |
| Height | 3.37 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 1 |
| Current Rating | 2.5 A |
| Max Power Dissipation | 1.3 W |
| Power Dissipation | 1.3 W |
| Threshold Voltage | 4 V |
| Number of Channels | 1 |
| Input capacitance | 640 pF |
| Continuous Drain Current (ID) | 2.5 A |
| Rds On Max | 100 mΩ |
| Drain to Source Voltage (Vdss) | 60 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 13 ns |
| Turn-Off Delay Time | 25 ns |
| Element Configuration | Single |
| Fall Time | 58 ns |
| Rise Time | 58 ns |
| Gate Charge | 25 nC |
| Drain to Source Resistance | 100 mΩ |
| Max Junction Temperature (Tj) | 175 °C |
| Recovery Time | 180 ns |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 60 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 2 V |
Stock: 4
Distributors
pcbx
pcbxUnit Price$2.00602
Ext.Price$2.00602
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.00602 | $2.00602 |
| 10 | $1.74816 | $17.48160 |
| 25 | $1.60935 | $40.23375 |
| 50 | $1.48157 | $74.07850 |
| 100 | $1.36392 | $136.39200 |
| 300 | $1.32535 | $397.60500 |
| 500 | $1.28787 | $643.93500 |
| 1000 | $1.25421 | $1254.21000 |
