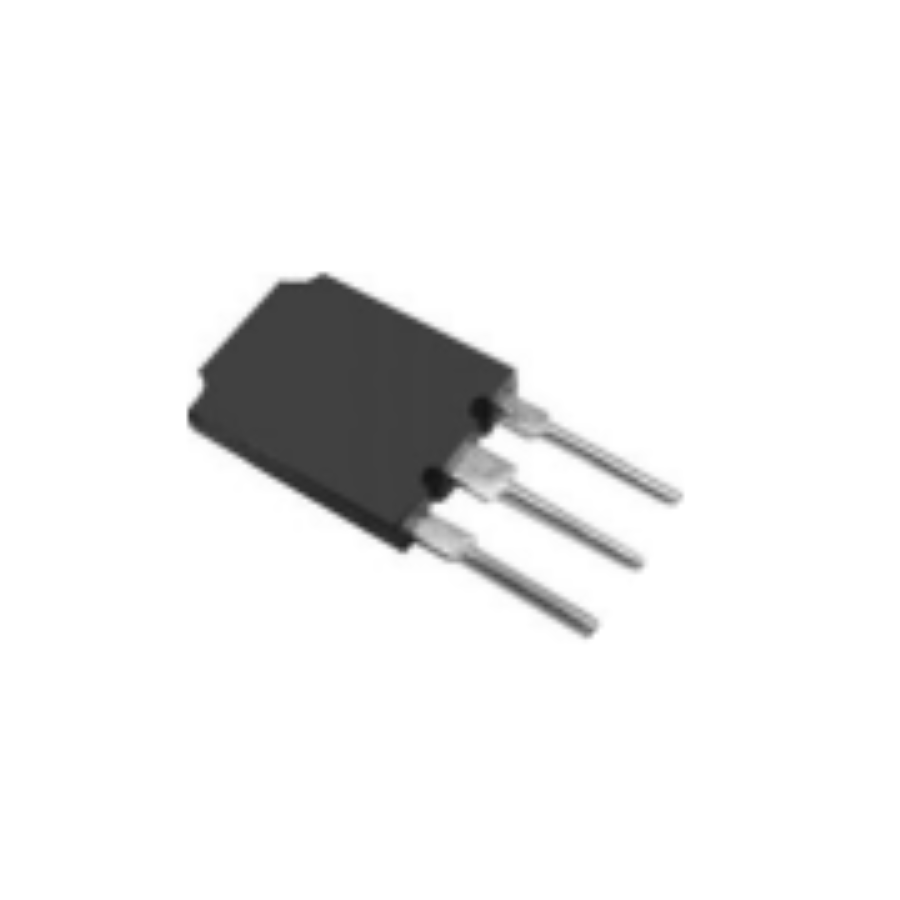

IRFPS38N60LPBF
Manufacturer:
Vishay
Mfr.Part #:
IRFPS38N60LPBF
Datasheet:
Description:
MOSFETs TO-274-3 Through Hole N-Channel number of channels:1 540 W 600 V Continuous Drain Current (ID):38 A 320 nC
| Parameter | Value |
|---|---|
| Length | 15.6 mm |
| Width | 5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Resistance | 150 mΩ |
| Height | 20.3 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 1 |
| Max Power Dissipation | 540 W |
| Power Dissipation | 540 W |
| Threshold Voltage | 5 V |
| Number of Channels | 1 |
| Input capacitance | 7.99 nF |
| Continuous Drain Current (ID) | 38 A |
| Rds On Max | 150 mΩ |
| Drain to Source Voltage (Vdss) | 600 V |
| Turn-On Delay Time | 44 ns |
| Turn-Off Delay Time | 92 ns |
| Element Configuration | Single |
| Fall Time | 69 ns |
| Rise Time | 130 ns |
| Gate Charge | 320 nC |
| Drain to Source Resistance | 120 mΩ |
| Gate to Source Voltage (Vgs) | 30 V |
| Drain to Source Breakdown Voltage (Vds) | 600 V |
| Schedule B | 8541290080 |
| Gate to Source Threshold Voltage | 3 V |
| FET Type(Transistor Polarity) | N-Channel |
