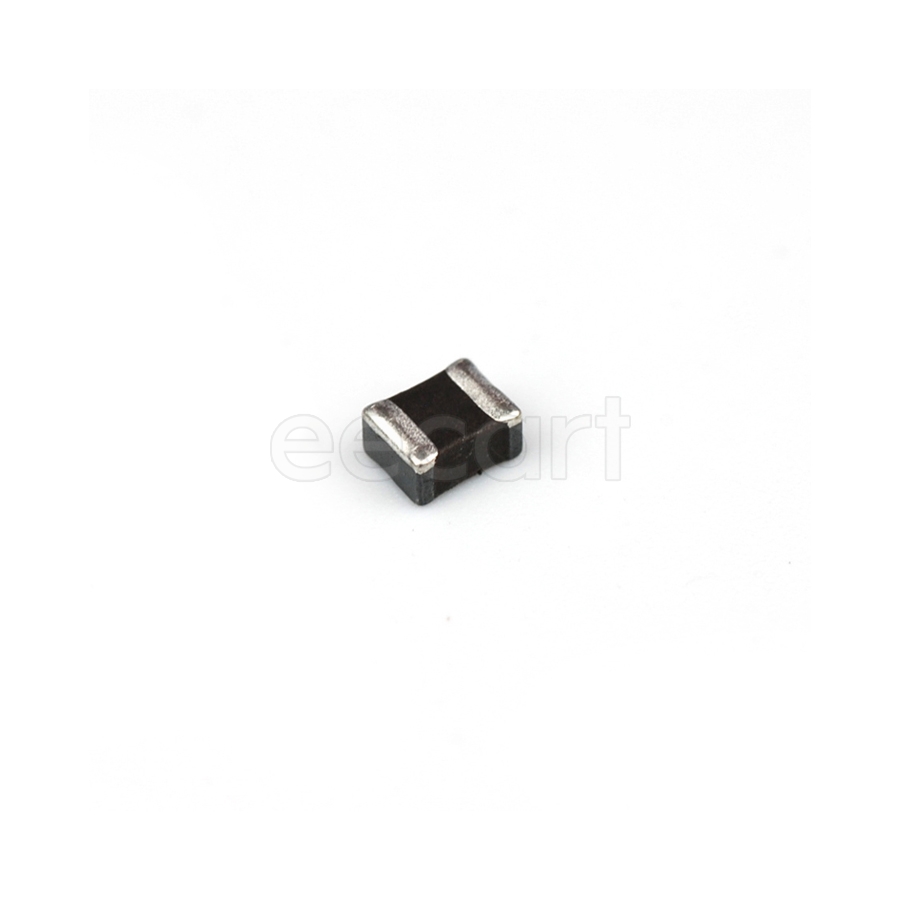

ISC1210ER220K
Manufacturer:
Vishay
Mfr.Part #:
ISC1210ER220K
Datasheet:
Description:
Fixed Inductors 1210(3225 Metric) SMD/SMT 22 µH 10 % 150 mA 3.1 Ω
| Parameter | Value |
|---|---|
| Tolerance | 10 % |
| Height - Seated (Max) | 2.413 mm |
| Length | 3.2 mm |
| Width | 2.4892 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 2.69 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Self Resonant Frequency | 16 MHz |
| Q Factor | 30 |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 3.1 Ω |
| Test Frequency | 2.52 MHz |
| Military Standard | Not |
| Shielding | Shielded |
| Body Material | Ferrite |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 150 mA |
| inductance tolerance | 10 % |
| Max DC Current | 150 mA |
| DC Current | 150 mA |
| Type | Molded |
Stock: 6764
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.42051 | $4.20510 |
| 25 | $0.39402 | $9.85050 |
| 50 | $0.36920 | $18.46000 |
| 100 | $0.34594 | $34.59400 |
| 300 | $0.32513 | $97.53900 |
| 500 | $0.30558 | $152.79000 |
| 1000 | $0.28720 | $287.20000 |
