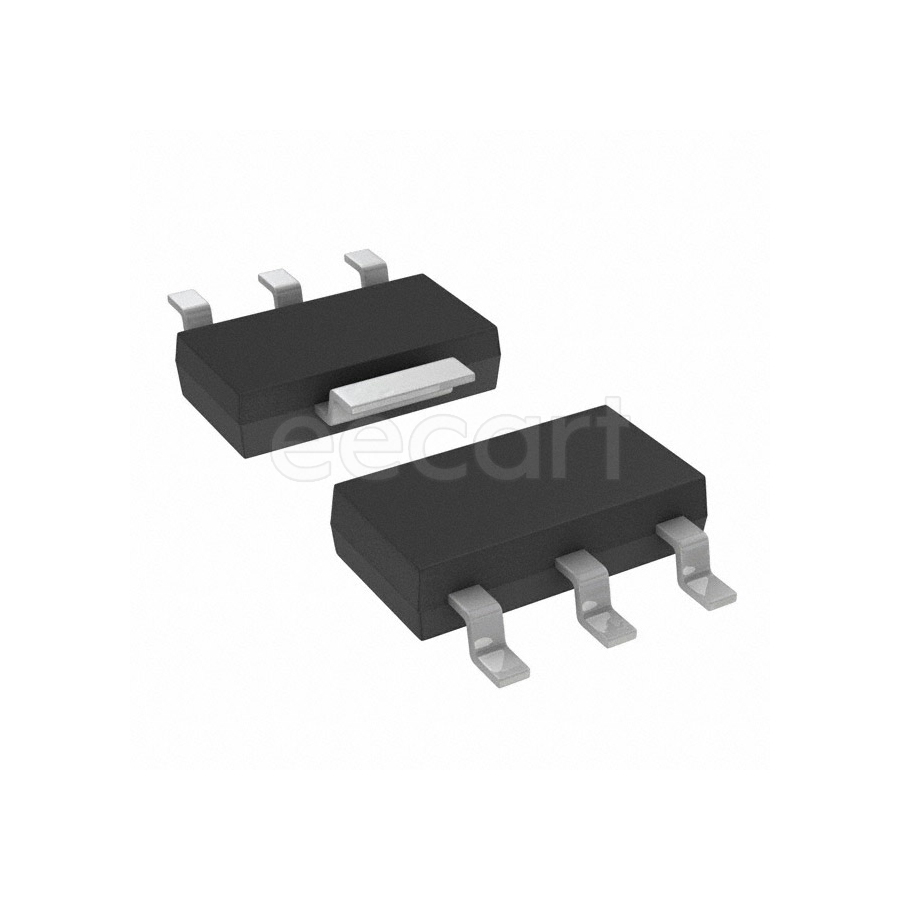

ITS4140NHUMA1
Manufacturer:
Infineon
Mfr.Part #:
ITS4140NHUMA1
Datasheet:
Description:
Power Switch ICs - Power Distribution SOT-223-3 SMD/SMT Turn-On Delay Time:100 µs Turn-Off Delay Time:140 µs 5 Ω
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 4 |
| Case/Package | SOT-223 |
| Mount | SMD/SMT |
| Packaging | Reel |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Type | High Side |
| Interface | On/Off |
| Output Current | 200 mA |
| Operating Supply Voltage | 4.9 V to 60 V |
| Output Type | N-Channel |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Supply Voltage | 60 V |
| Power Dissipation | 1.7 W |
| Max Output Current | 200 mA |
| Number of Channels | 1 |
| Turn-On Delay Time | 100 µs |
| Turn-Off Delay Time | 140 µs |
| Number of Outputs | 1 |
| Load Current | 1.2 A |
| Nominal Input Voltage | 60 V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| On-State Resistance | 1.5 Ω |
| Schedule B | 8542390000 |
| Package Quantity | 4000 |
| On Resistance (RON) | 5 Ω |
| Ratio - Input:Output | 1:1 |
| Current Limit | 900 mA |
Stock: 19
Distributors
pcbx
pcbxUnit Price$1.21430
Ext.Price$1.21430
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.21430 | $1.21430 |
| 10 | $0.99638 | $9.96380 |
| 25 | $0.90539 | $22.63475 |
| 50 | $0.82271 | $41.13550 |
| 100 | $0.74758 | $74.75800 |
| 300 | $0.71622 | $214.86600 |
| 500 | $0.68618 | $343.09000 |
| 1000 | $0.65921 | $659.21000 |
