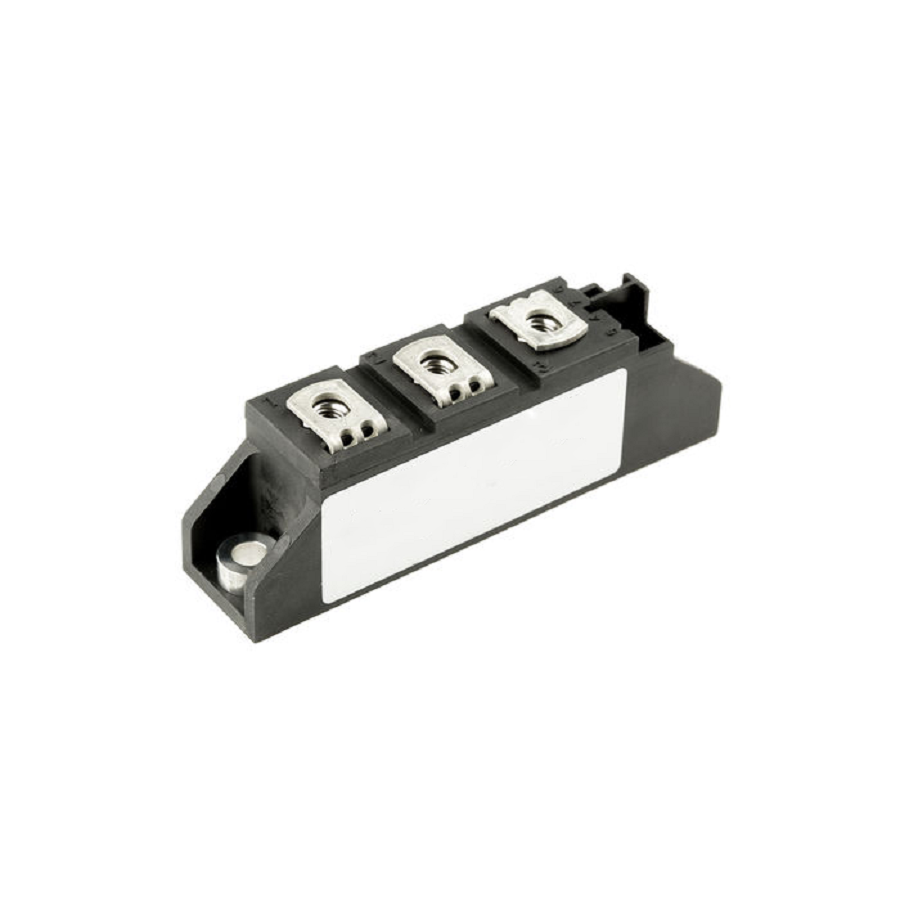

MDD95-16N1B
Manufacturer:
IXYS
Mfr.Part #:
MDD95-16N1B
Datasheet:
Description:
Rectifier Diodes TO-240AA Chassis Mount, Panel, Screw Standard Dual Forward Current:120 A Forward Voltage:1.43 V Reverse Voltage:1.6 kV
| Parameter | Value |
|---|---|
| Length | 92 mm |
| Width | 20.8 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 30 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Standard |
| Forward Current | 120 A |
| Forward Voltage | 1.43 V |
| Average Rectified Current | 120 A |
| Max Reverse Voltage (DC) | 1.6 kV |
| Max Repetitive Reverse Voltage (Vrrm) | 1.6 kV |
| Element Configuration | Dual |
| Forward Surge Current (Ifsm) | |
| Reverse Voltage | 1.6 kV |
| Peak Non-Repetitive Surge Current | 3.3 kA |
| Reverse Current | 15 mA |
Stock: 7
Distributors
pcbx
pcbxUnit Price$29.25160
Ext.Price$29.25160
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $29.25160 | $29.25160 |
| 10 | $28.89600 | $288.96000 |
| 25 | $28.80727 | $720.18175 |
| 50 | $28.71887 | $1435.94350 |
| 100 | $28.83769 | $2883.76900 |
