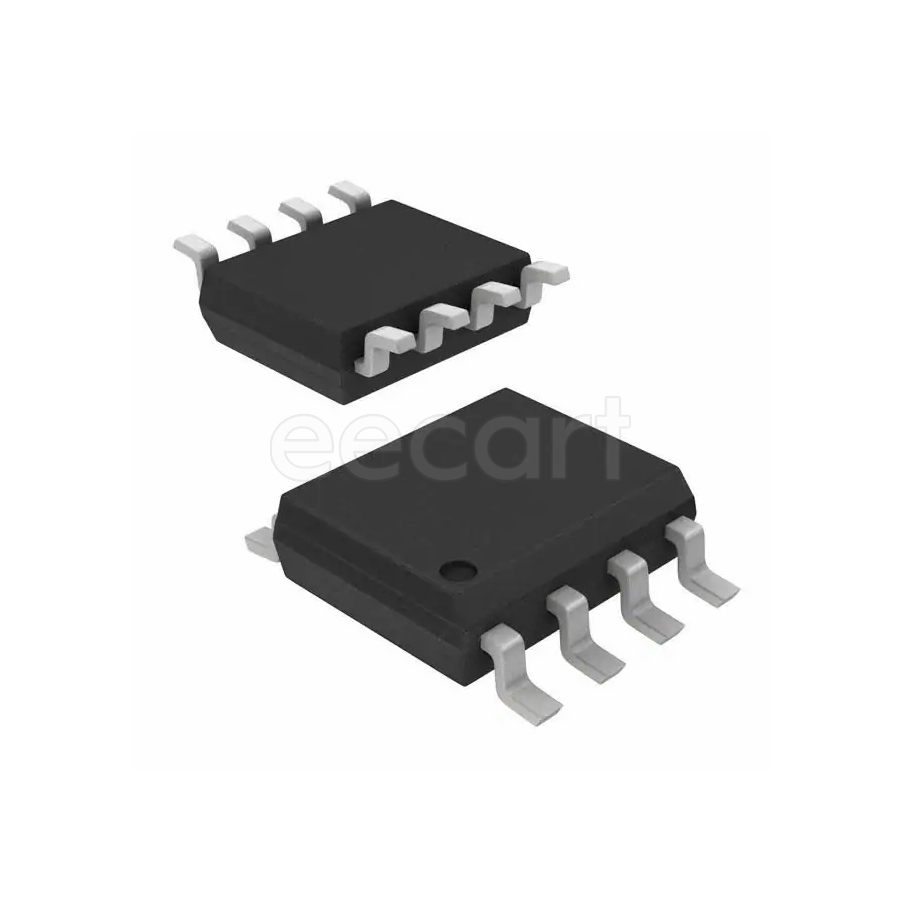

BTS3035EJXUMA1
Manufacturer:
Infineon
Mfr.Part #:
BTS3035EJXUMA1
Datasheet:
Description:
Power Switch ICs - Power Distribution PG-TDSO-8 SMD/SMT Turn-On Delay Time:115 µs Turn-Off Delay Time:210 µs 70 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Type | Low Side |
| Interface | On/Off |
| Output Current | 5 A |
| Output Voltage | 40 V |
| Operating Supply Voltage | 3 V to 5.5 V |
| Output Type | N-Channel |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Number of Channels | 1 |
| Drain to Source Voltage (Vdss) | 40 V |
| Turn-On Delay Time | 115 µs |
| Turn-Off Delay Time | 210 µs |
| Number of Outputs | 1 |
| Nominal Input Voltage | 5.5 V |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Schedule B | 8542390000 |
| Package Quantity | 3000 |
| On Resistance (RON) | 70 mΩ |
| Current Limit | 20 A |
Stock: 17486
Distributors
pcbx
pcbxUnit Price$0.72583
Ext.Price$0.72583
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.72583 | $0.72583 |
| 10 | $0.52664 | $5.26640 |
| 25 | $0.47705 | $11.92625 |
| 50 | $0.44841 | $22.42050 |
| 100 | $0.42148 | $42.14800 |
| 300 | $0.39953 | $119.85900 |
| 500 | $0.37873 | $189.36500 |
| 1000 | $0.36506 | $365.06000 |
| 3000 | $0.34881 | $1046.43000 |
