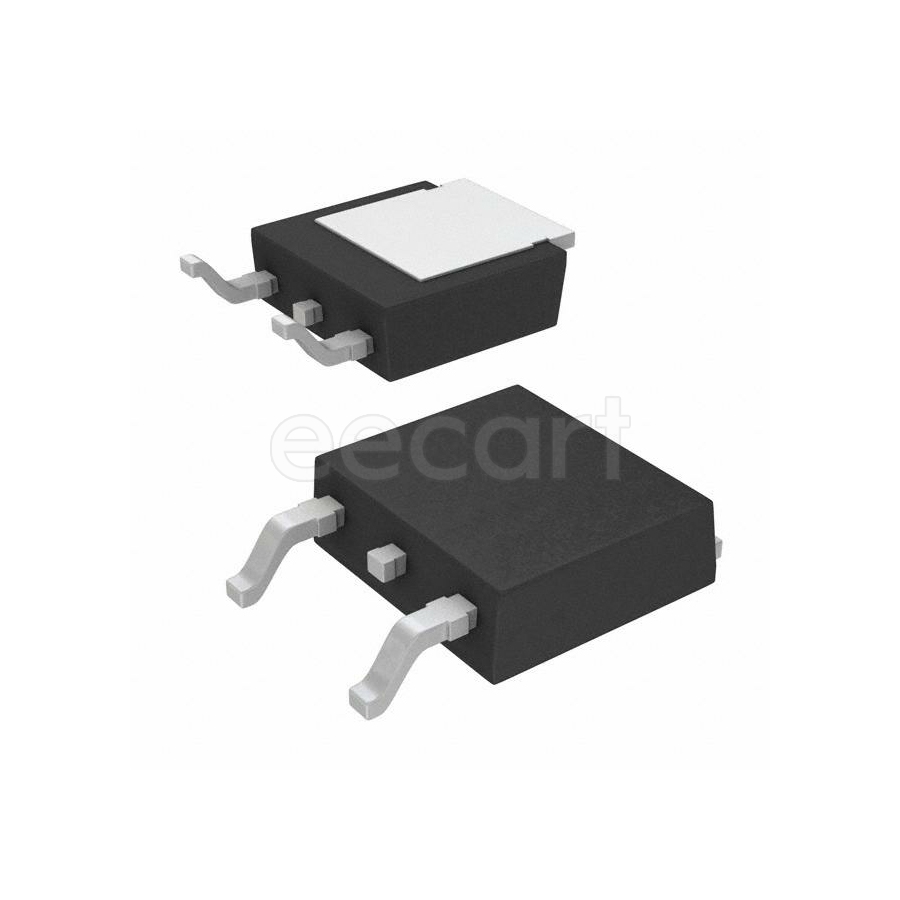

BTS3142DATMA1
Manufacturer:
Infineon
Mfr.Part #:
BTS3142DATMA1
Datasheet:
Description:
Power Switch ICs - Power Distribution TO-252-3 SMD/SMT Turn-On Delay Time:120 µs Turn-Off Delay Time:120 µs 28 mΩ
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Low Side |
| Interface | On/Off |
| Output Current | 4.6 A |
| Output Voltage | 42 V |
| Operating Supply Voltage | 1.3 V to 2.2 V |
| Output Type | N-Channel |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Max Power Dissipation | 59 W |
| Power Dissipation | 59 W |
| Max Output Current | 4.6 A |
| Number of Channels | 1 |
| Drain to Source Voltage (Vdss) | 42 V |
| Turn-On Delay Time | 120 µs |
| Turn-Off Delay Time | 120 µs |
| Output Configuration | Low Side |
| Number of Outputs | 1 |
| Nominal Input Voltage | 42 V |
| Max Dual Supply Voltage | 42 V |
| Fault Protection | Over Temperature, Over Voltage |
| On-State Resistance | 28 mΩ |
| Schedule B | 8542390000 |
| Package Quantity | 2500 |
| On Resistance (RON) | 28 mΩ |
| Current Limit | 45 A |
Stock: 1
Distributors
pcbx
pcbxUnit Price$1.66995
Ext.Price$1.66995
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.66995 | $1.66995 |
| 10 | $1.63069 | $16.30690 |
| 25 | $1.61349 | $40.33725 |
| 50 | $1.59647 | $79.82350 |
| 100 | $1.57965 | $157.96500 |
